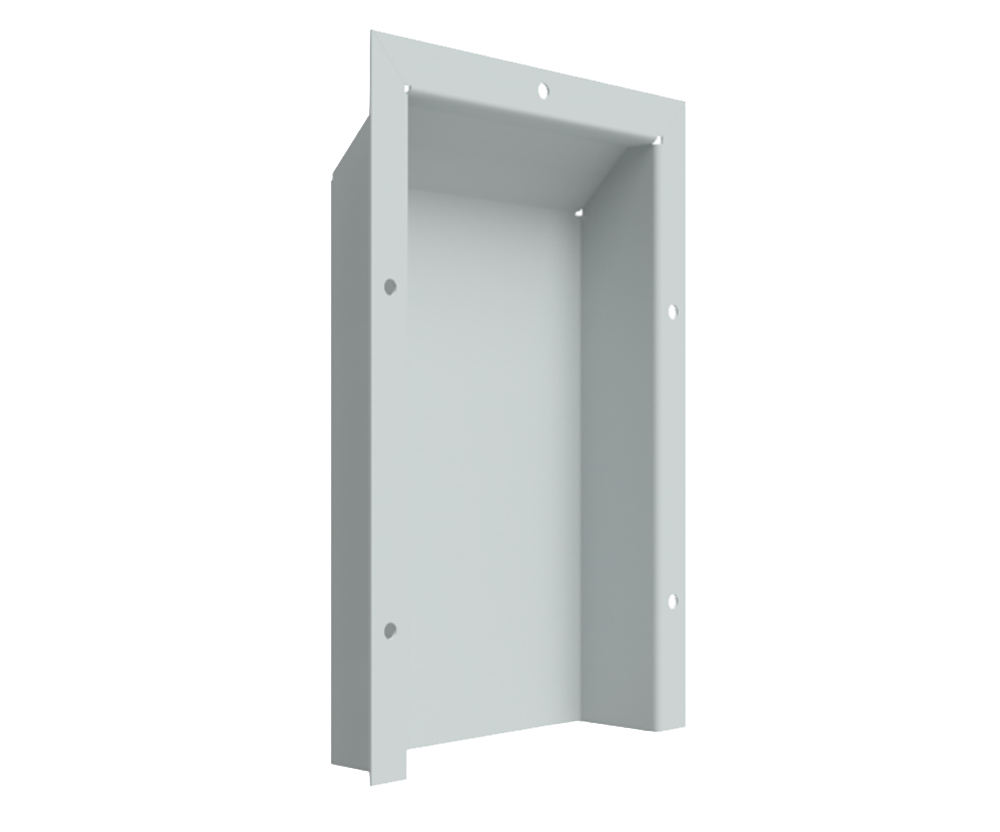

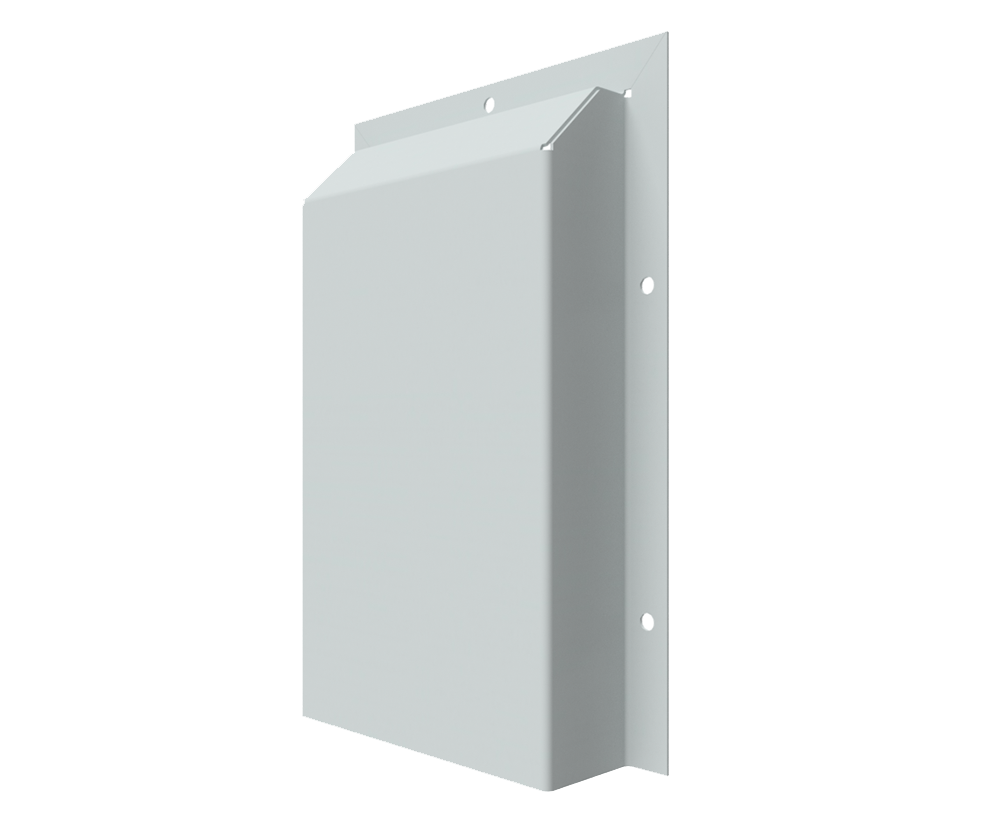

RAL7035 Zinc Anneal, Vent Hood, with External Flange - 475Hx375Wx75D

SKU: MS-RAL7035-VHE-475x375x75
Fully Welded Construction, Fitted with Nutserts Supplied with a seal. Note: This does not include installation. See WS11 to laser-cut the holes and to install the Venthoods.
Availability : In Stock
Regular price
$91.00 Excl. GST
Sale price
$91.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

AE Stainless’ range of Vent Hoods are designed to protect vent intakes on a standard wall mounted enclosure, to prevent water to enter the enclosure. If used with filtered outlet filters, the IP rating can increase to IP56. They are easily fitted to any standard size enclosure.

The standard vent hoods have an internal flange, which is fitted with nutserts. On this type, the vent hood is bolted to the enclosure from the inside for extra security. The vent hoods with the external flange, are bolted to the enclosure from the outside. This allows easy removal of the vent hood, where filters need to be cleaned from the outside. The Hinged Vent Hood is designed for application, where the filter elements must be changed frequently. Secured by Lock.

  • Made from 316 stainless steel or zinc anneal powder coated RAL7035 or X15 Orange
  • To fit most Enclosures
  • Fully welded construction
  • IP56 if used with filtered outlet filters

Specifications and Features

AE Stainless’ range of Vent Hoods are designed to protect vent intakes on a standard wall mounted enclosure, to prevent water to enter the enclosure. If used with filtered outlet filters, the IP rating can increase to IP56. They are easily fitted to any standard size enclosure.

The standard vent hoods have an internal flange, which is fitted with nutserts. On this type, the vent hood is bolted to the enclosure from the inside for extra security. The vent hoods with the external flange, are bolted to the enclosure from the outside. This allows easy removal of the vent hood, where filters need to be cleaned from the outside. The Hinged Vent Hood is designed for application, where the filter elements must be changed frequently. Secured by Lock.

  • Made from 316 stainless steel or zinc anneal powder coated RAL7035 or X15 Orange
  • To fit most Enclosures
  • Fully welded construction
  • IP56 if used with filtered outlet filters

Technical Drawing PDF

Or Download DWG File

Download .dwg file
