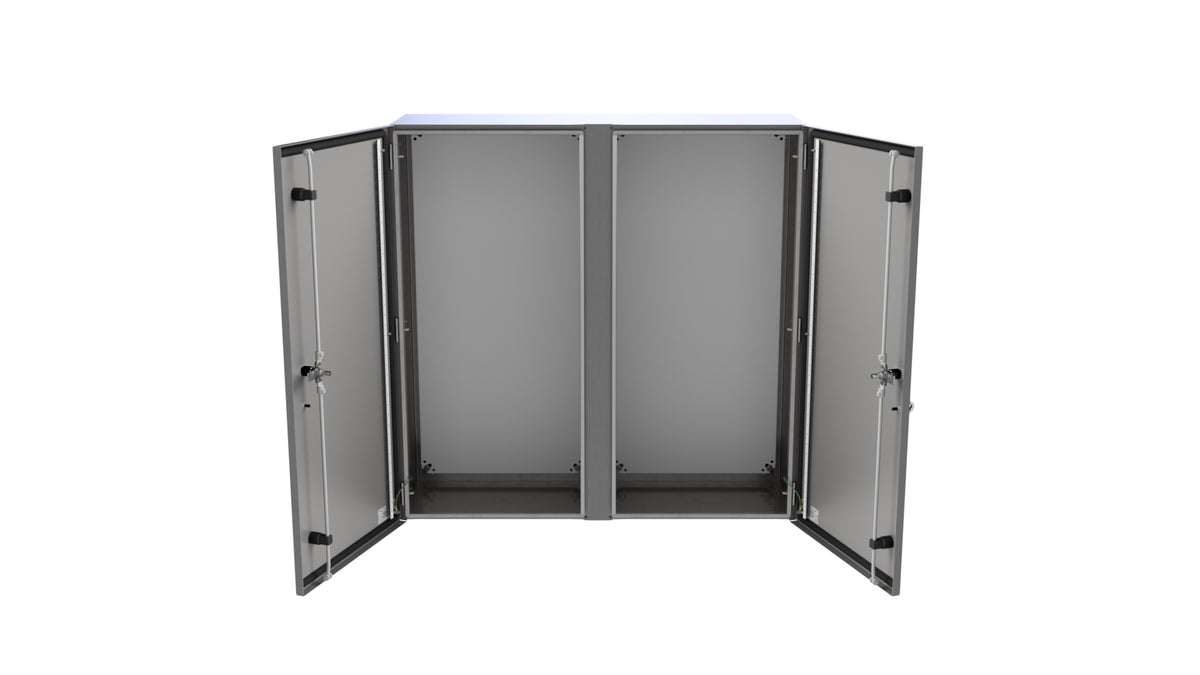

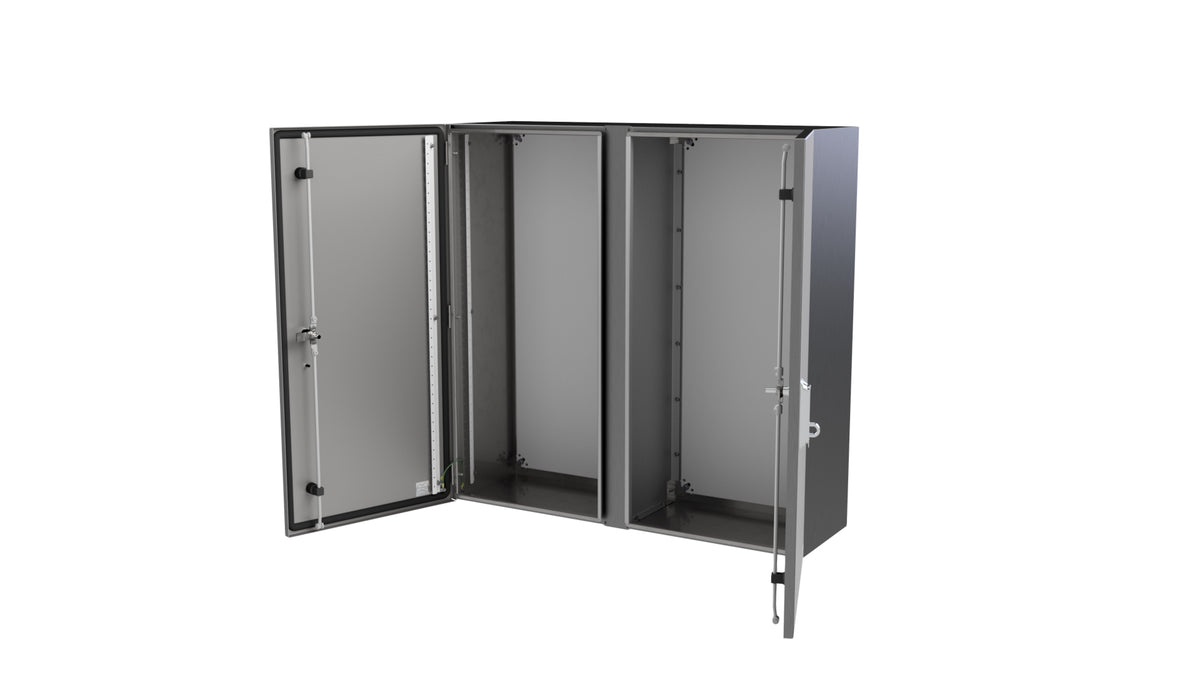

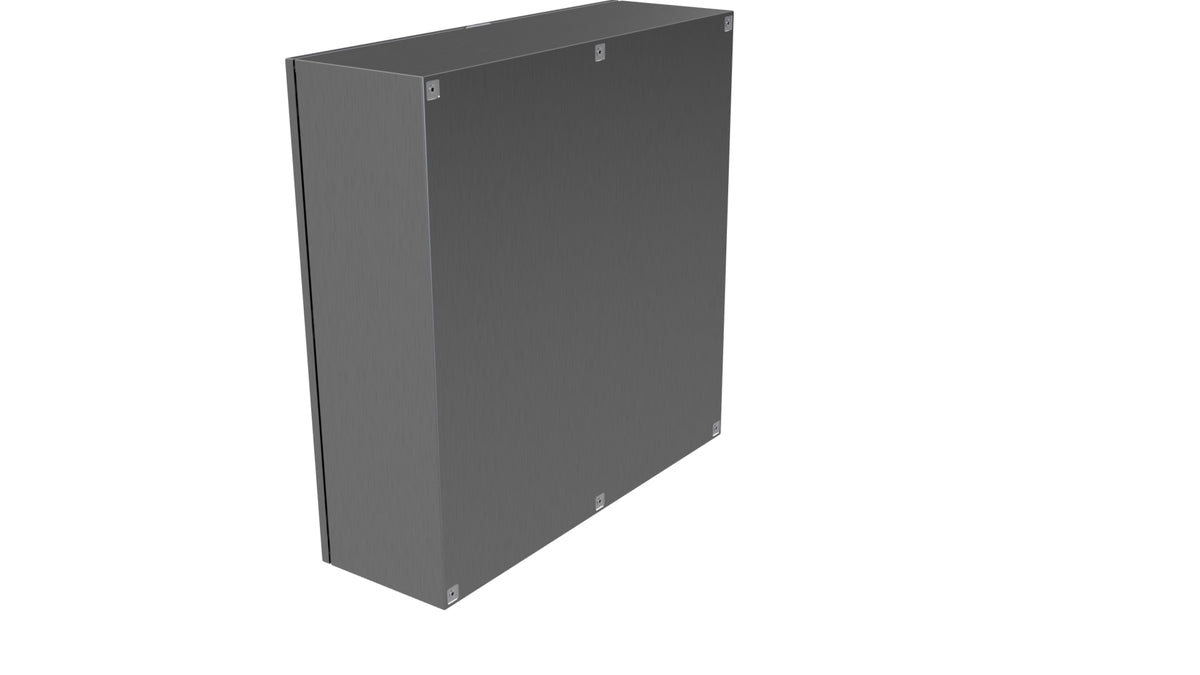

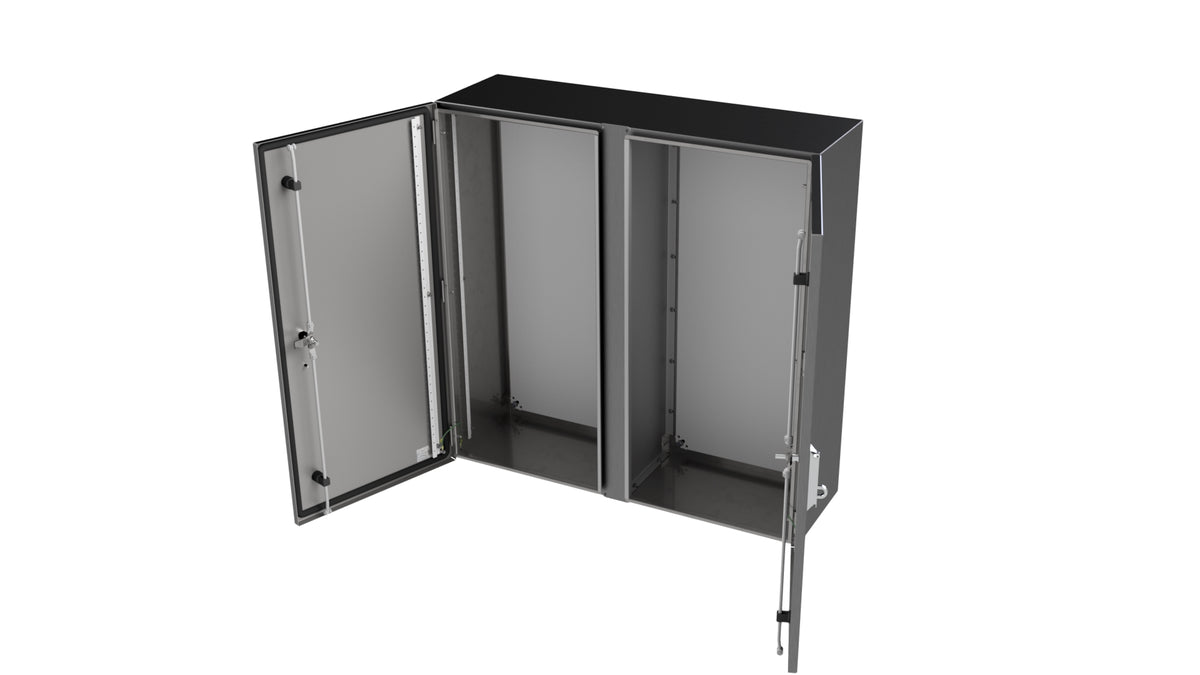

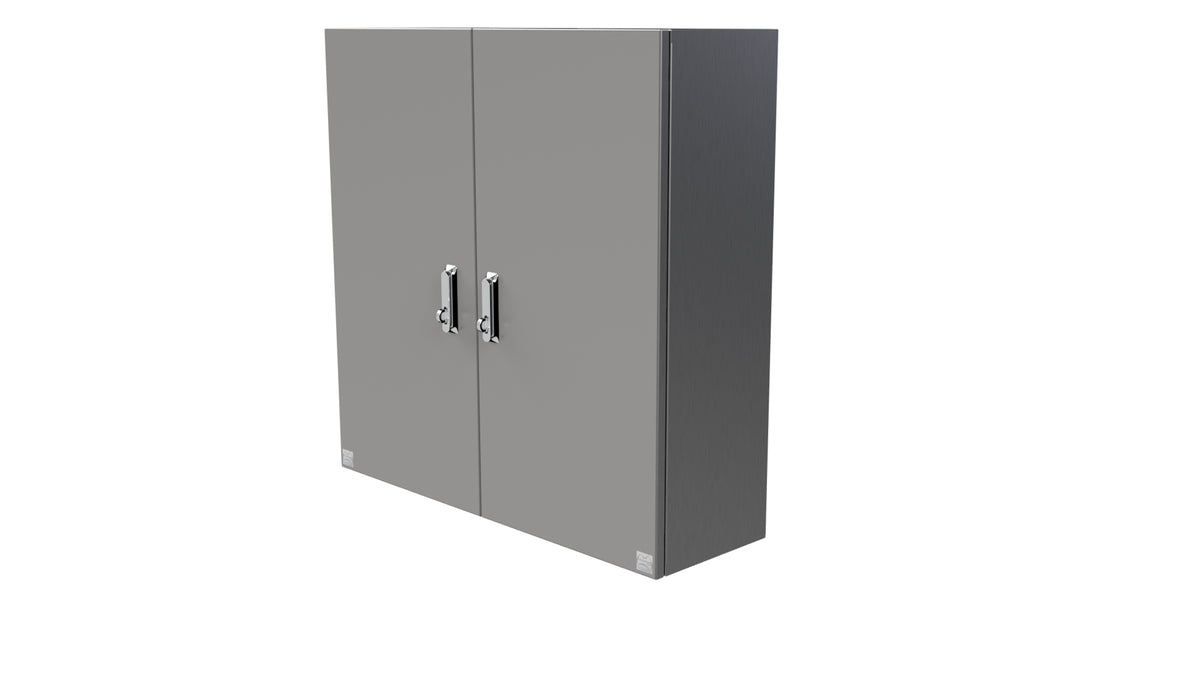

316L Stainless Steel Double compartment Enclosure 1000Hx1000Wx300D - 1.5mm Removable Mullion

SKU: SS-DD-1000x1000x300-R
Made from 316L Stainless Steel, N4 Finish, IP66 Rated and IK10 Tested Double Door Enclosure with REMOVABLE Centre Mullion. Includes - 2x Stainless steel Padlock Swing handles, 2x White Mild steel gear tray, 6x M8 wall brackets. To maintain the IP Rating, you must apply sealant on the joints.
Availability : In Stock
Regular price
$2,070.00 Excl. GST
Sale price
$2,070.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

AE Stainless’ range of stainless steel Standard Enclosures are renowned for its build quality, aesthetics and functionality. They are designed to protect equipment in extreme conditions - including corrosive marine. They are also designed to easily bolt in AE Stainless branded accessories such as Escutcheon/Inner doors, 19” racks etc.

  • Made from 1.5mm 316 stainless steel
  • Fully welded construction - IP66 rating, IK10 Tested
  • Door earthed to cabinet via earth studs
  • Polyurethane door seal
  • 2mm white powder coated galvanised steel gear tray included
  • 2 x Wiring Loom Z-brackets included to help with cable management across door hinges
  • Folded lip/gutter to ensure effective door seal
  • Door fitted with concealed hinges on one side and 2-bit stainless steel lock on the other (600mm high and above have 2 x locks)
  • Rear mounting holes fitted with blind nutserts to ensure IP rating
  • 6 x wall mounting brackets included

Technical Drawing PDF

Or Download DWG File

Download .dwg file
