316L Stainless Steel Terminal Box 400Hx300Wx120D - 1.2mm

SKU: SS-TB-400x300x120
Made from 316L Stainless Steel, N4 Finish, IP66 Rated and IK10 Tested Terminal box Supplied with 2mm Stainless Steel gear tray M6 blind nutserts fitted in the rear for easy mounting, while maintaining IP66 No wall mounting brackets included, see SS-FMK-xxx
Availability : In Stock
Regular price
$323.00 Excl. GST
Sale price
$323.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

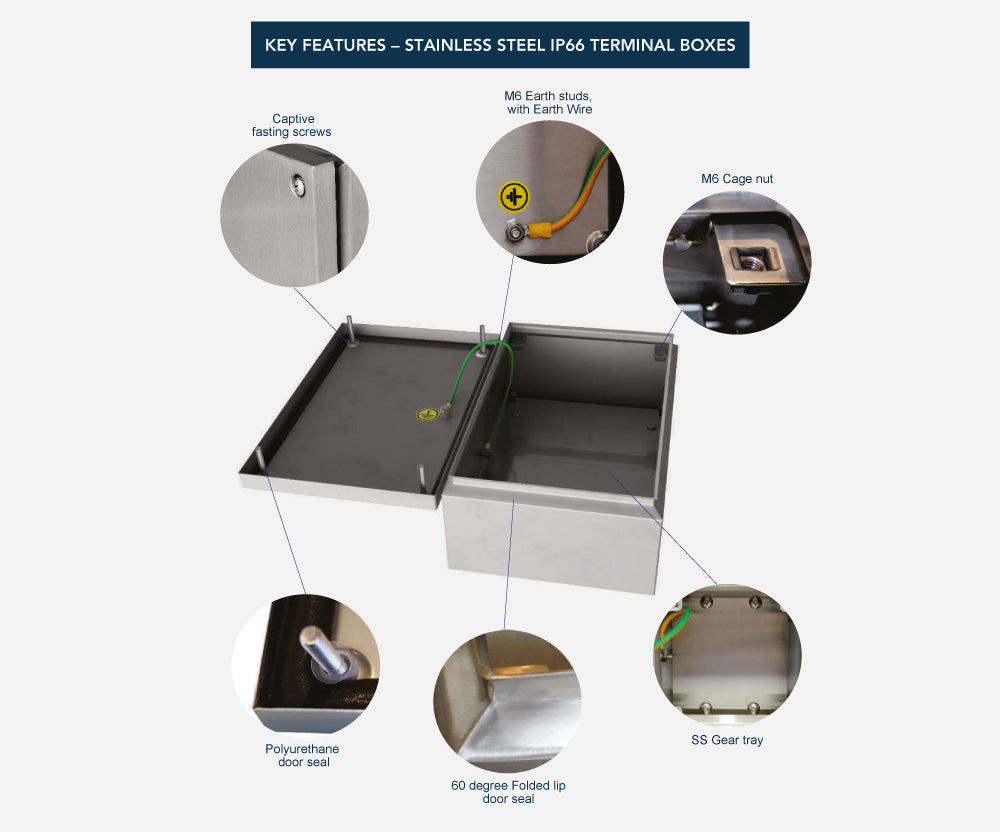

AE Stainless’ range of stainless steel Terminal Boxes are designed as a cost effective solution to protect equipment in a wet, corrosive environment.

  • Made from 1.2mm 316 stainless steel
  • Fully welded construction - IP66 rating, IK10 Tested
  • Lid earthed to box via earth studs
  • Polyurethane door seal
  • Door fitted with 4 stainless steel sealing fasting screws
  • 2mm stainless steel gear tray included
  • Some sizes will be available with 4 x M6 nutserts fitted - Please contact us to see if required size has been updated and if in stock

Technical Drawing PDF

Or Download DWG File

Download .dwg file
