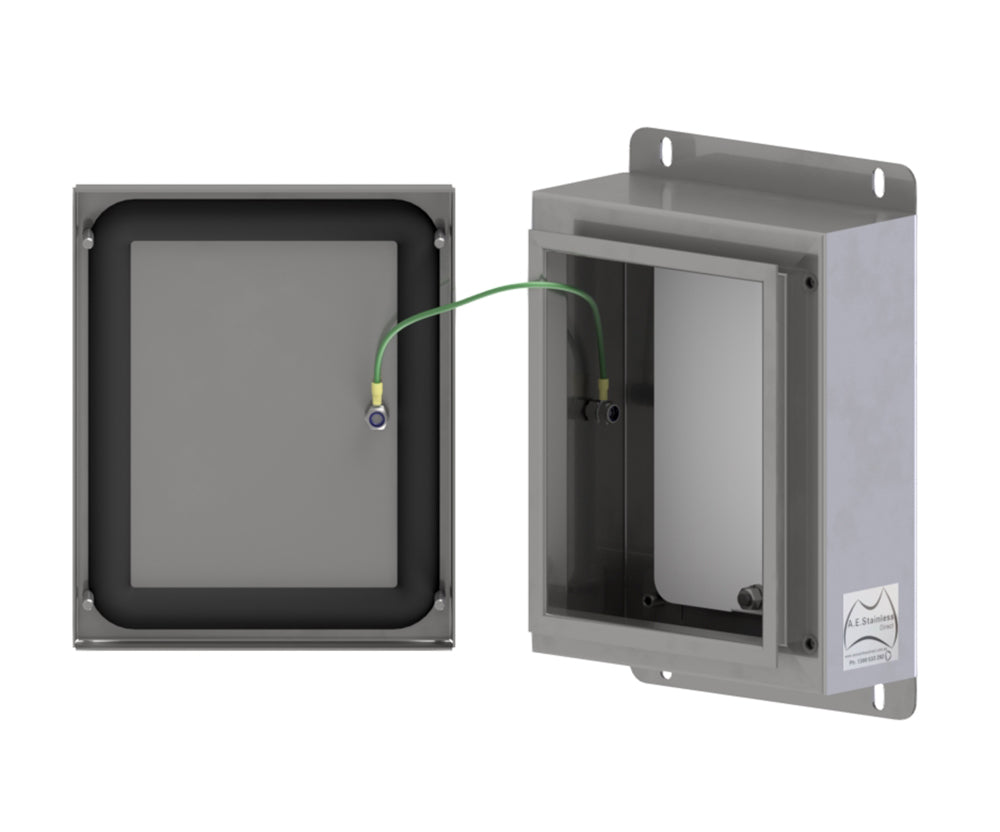

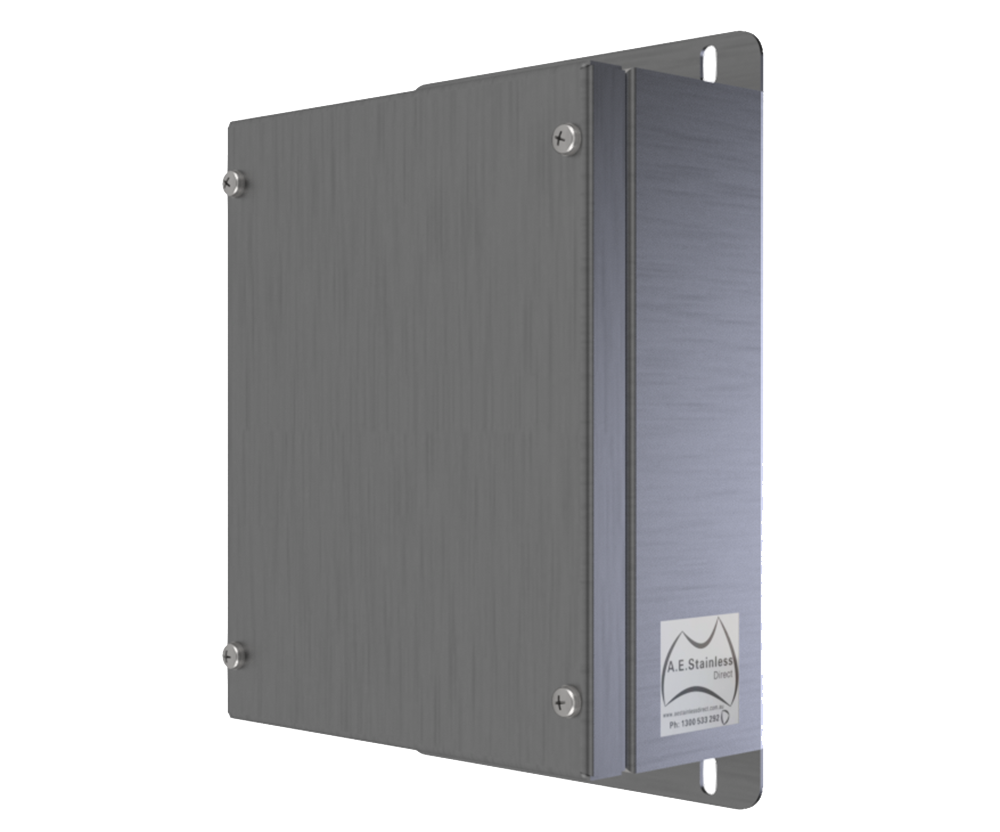

316L Stainless Steel Pushbutton Station 220Hx180Wx90D (6 Hole) with Blank Lid

SKU: SS-PBS-B6-221890
Made from 316L Stainless Steel 1.5mm, N4 Finish, IP66 Rated and IK10 Tested Enclosure Includes - Removable Wall Mounting Plate, M6 Blind Nutserts, White Powder Coated Gear Tray
Availability : In Stock
Regular price
$248.00 Excl. GST
Sale price
$248.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

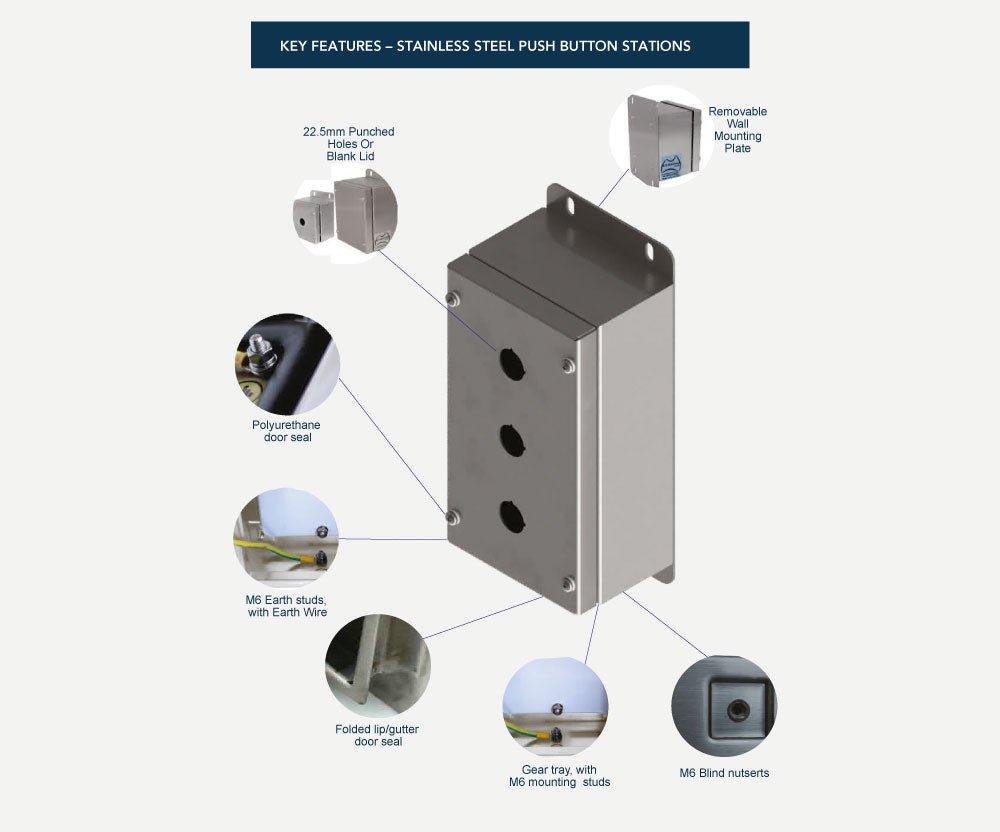

AE Stainless’ range of stainless steel Push Button Stations are renowned for build quality, aesthetics and functionality. They are designed to protect push buttons, selector switches, and pilot lights in extreme conditions - including corrosive marine environments.

  • Made from 1.5mm 316 stainless steel
  • Fully welded construction - IP66 rating, IK10 Tested
  • 22.5mm holes
  • Removable wall mounting plate included
  • 2mm white powder coated galvanised steel gear tray included
  • Both the lid and wall mounting plate mounting holes are fitted with blind nutserts to ensure that the enclosure is waterproof
  • Lid earthed to box via earth studs
  • Polyurethane door seal
  • Folded lip/gutter to ensure effective door seal

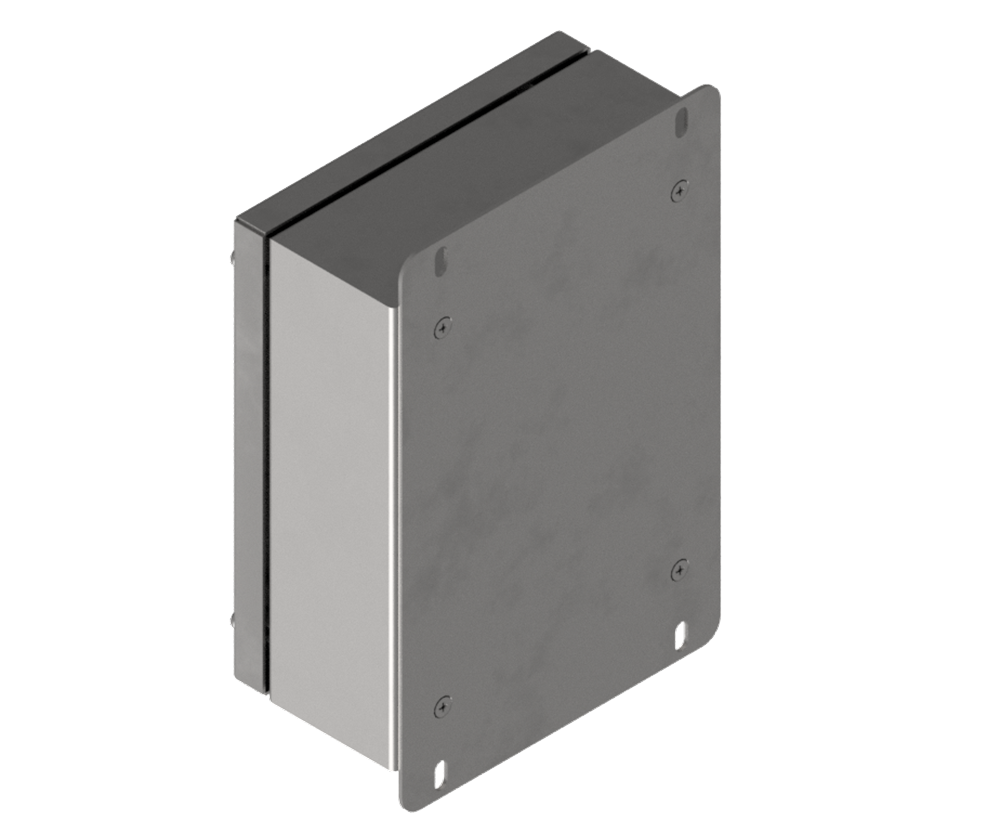

  • Easy wall mounted via top and bottom flange or direct onto equipment via 4 x rear nutserts
