316 SS IP3X Distribution Board Kit with Type X -600x400x300 (made to order) - POA

Name: 316 SS IP3X Distribution Board Kit with Type X -600x400x300 (made to order) - POA
Brand: AE Stainless Direct
SKU: SS-DB-TypeX-600x400x300
Price: 403.0 AUD
Availability: InStock

SKU: SS-DB-TypeX-600x400x300

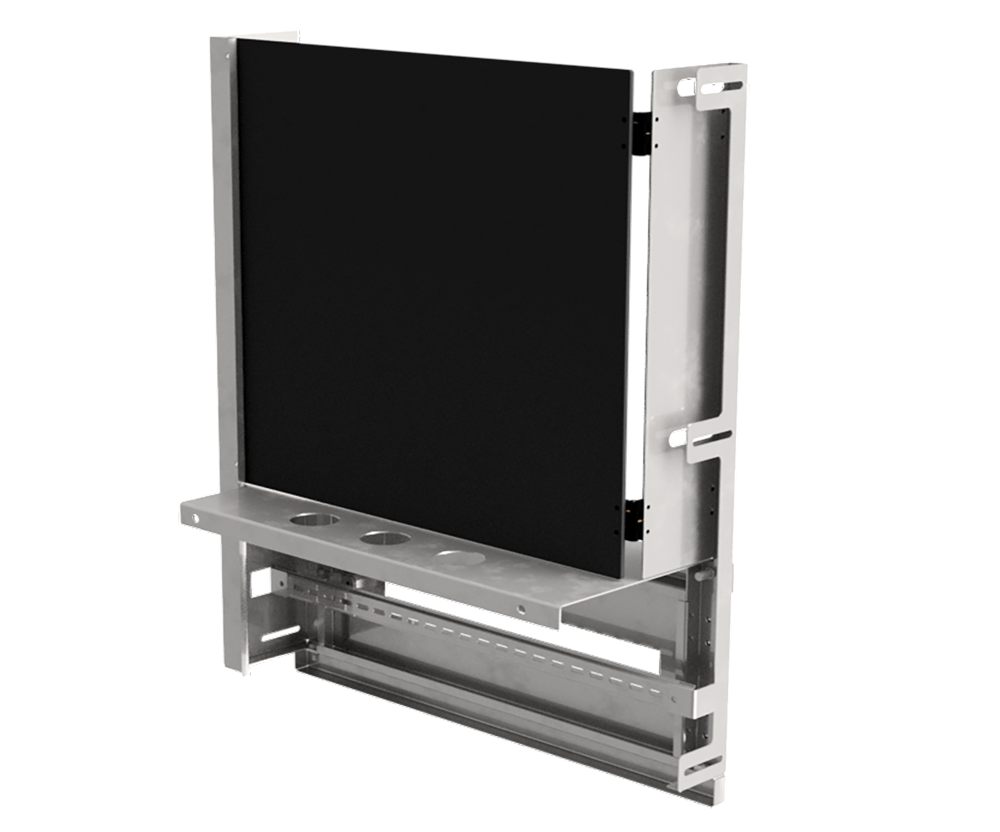

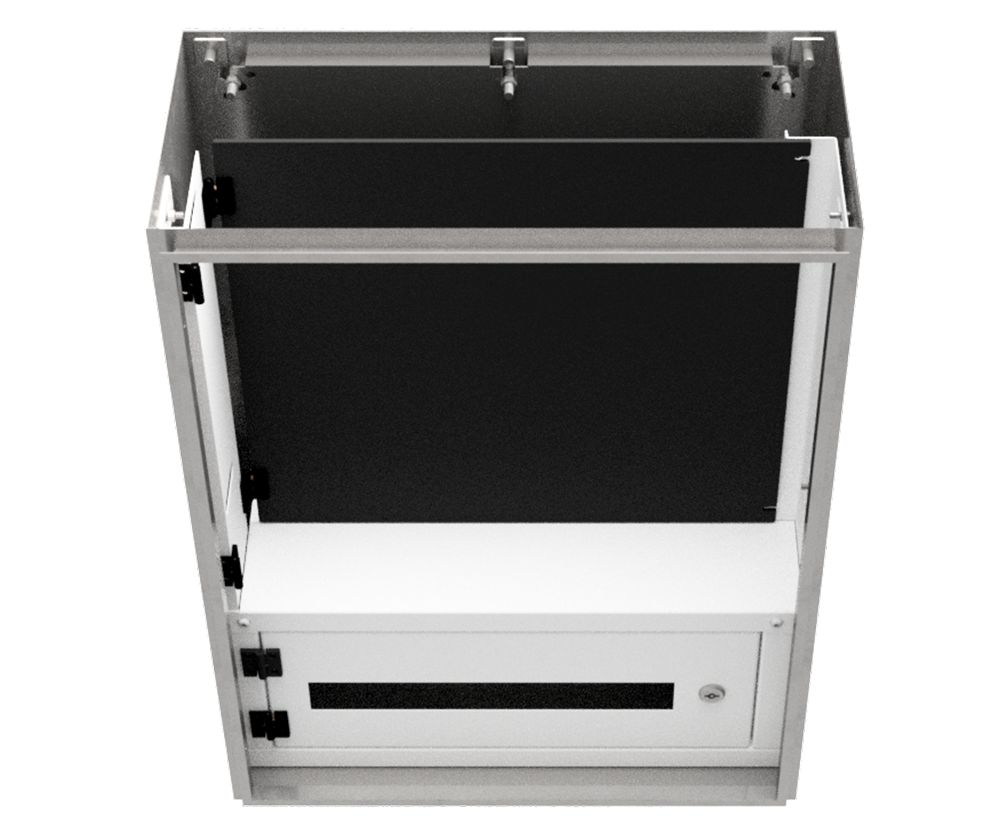

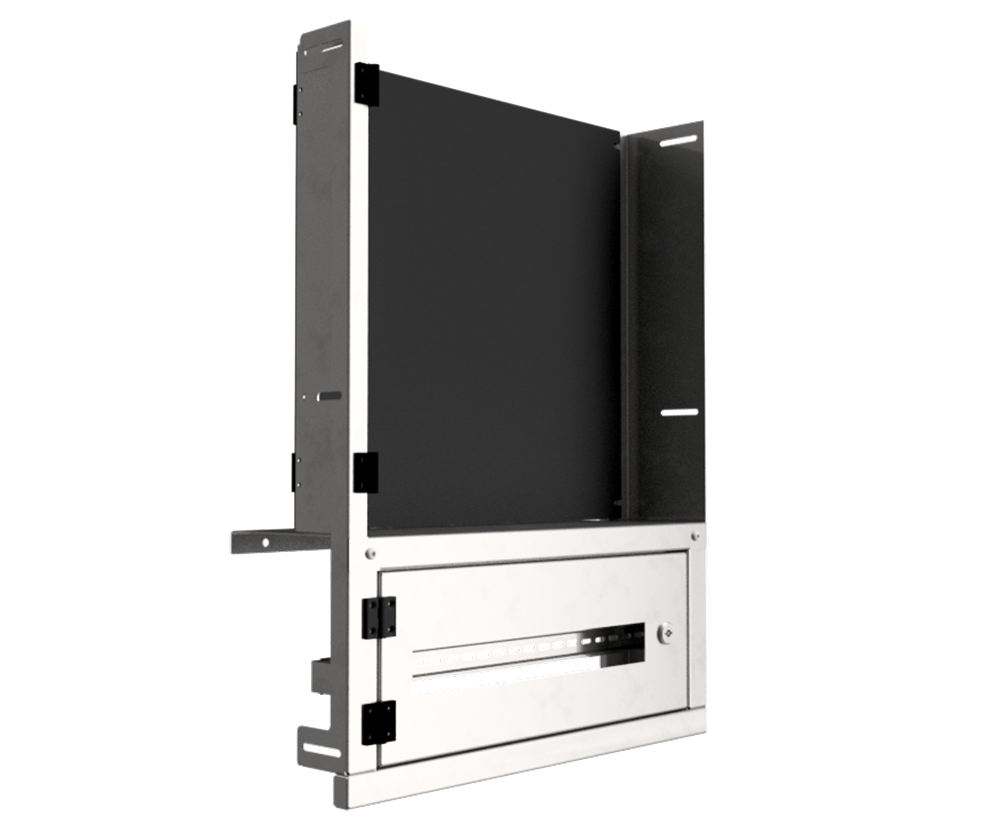

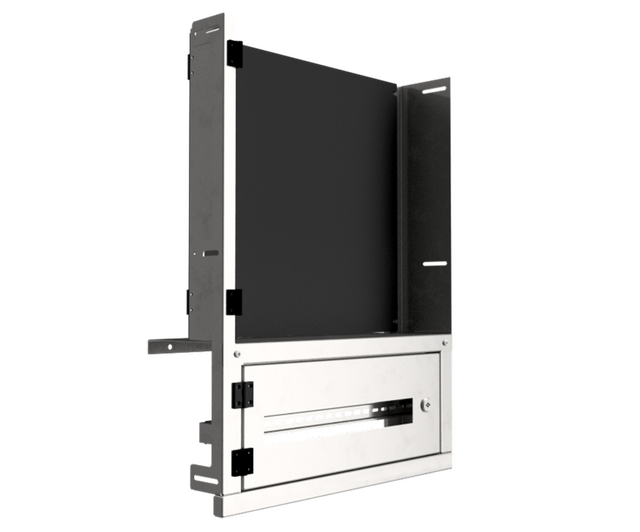

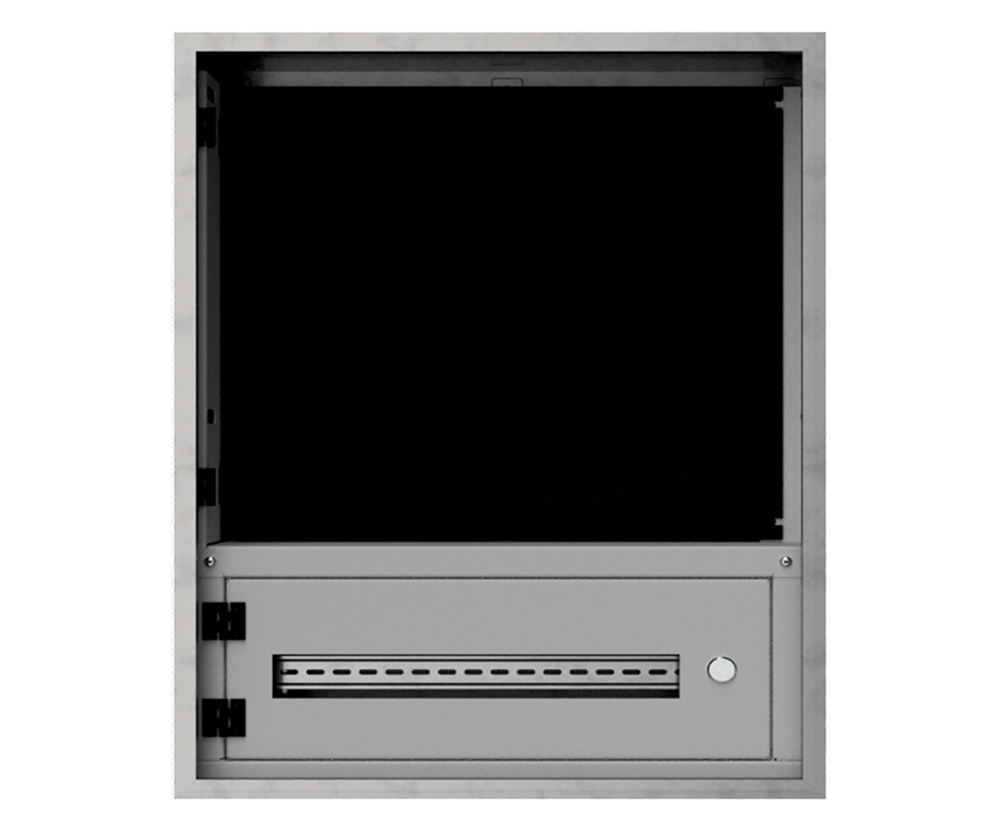

Double Hinged Door design, 1 x Horizontal Row, 10 Poles ,DIN rail included, to fit 600Hx400Wx300D enclosure Meter Panel open 180degrees, fitted with double hinges, made from black Type X insulated board. Brackets and door made from 1.5mm 316 Stainless Steel. Note: This does not include installation. See WS39A to install this Type X Panel.

Availability : Made to Order

Regular price: $403.00 Excl. GST
Sale price: $403.00
Regular price
Unit price: per

Shipping calculated at checkout.

We Support:

Specifications and Features

AE Stainless has a range of Meter board / Distribution Board Kits to fit AES Standard or Sloping Roof Enclosures. These kits are designed to easily fit AE Stainless enclosures. (They can also be bolted into other brand enclosures) Any custom sizes can be made on request.

Hinged DB Door Design
M6 Earth Stud
Standard 35mm wide DIN Rail included
10-21 Pole slot in the DB Board
Double Hinged Type X meter panel
Meter panel is made from Black Type X insulated board
MS brackets made from 2mm galvanised steel, powder coated
SS brackets made from 1.5mm stainless steel
Fitted with 2-bit steel lock and pull tab

Specifications and Features

Hinged DB Door Design
M6 Earth Stud
Standard 35mm wide DIN Rail included
10-21 Pole slot in the DB Board
Double Hinged Type X meter panel
Meter panel is made from Black Type X insulated board
MS brackets made from 2mm galvanised steel, powder coated
SS brackets made from 1.5mm stainless steel
Fitted with 2-bit steel lock and pull tab
