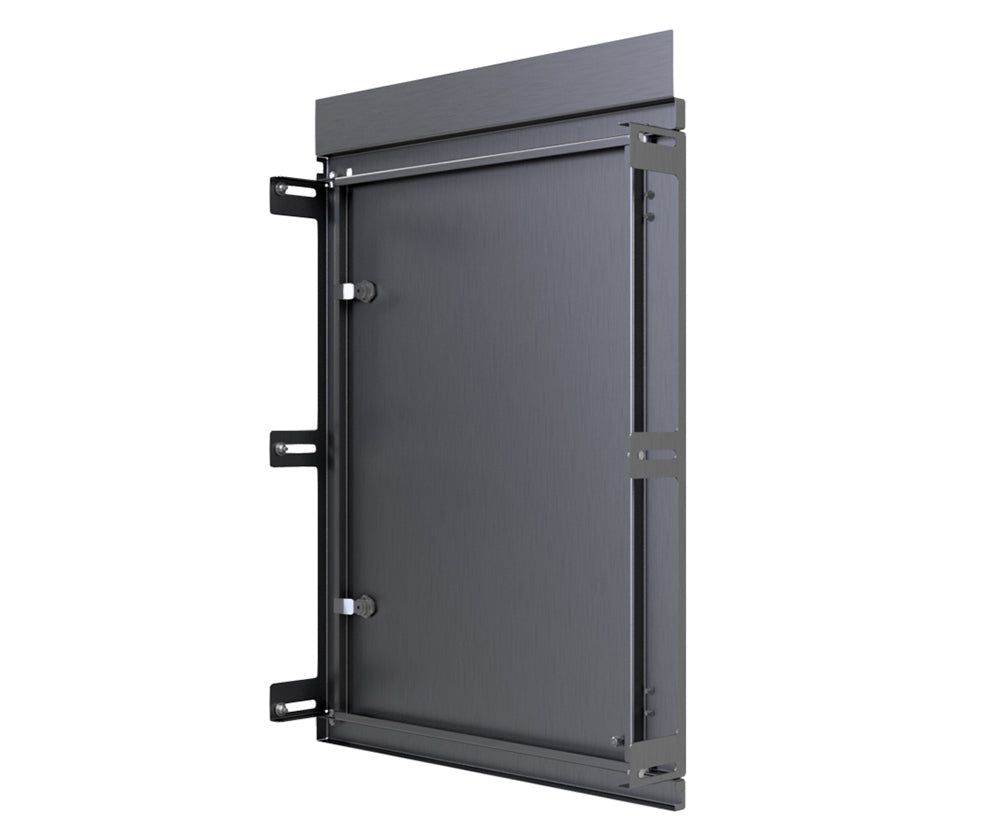

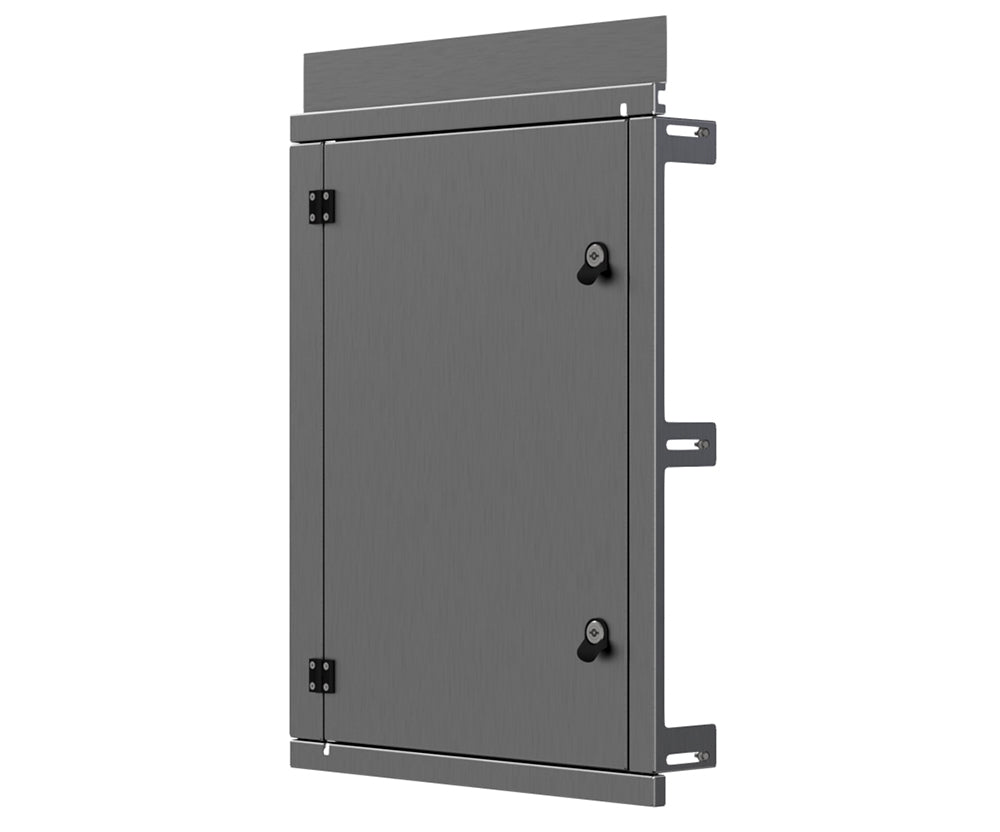

316 1.5mm SS Escutcheon - IP3X, to fit 800Hx600W Sloping Roof Enclosure (made to order) - POA
SKU: SS-Escut-IP3X-SRE-800x600Fitted with 2-bit steel locks and pull tabs.The kit comes complete with hinges/nuts/bolts Note: This does not include installation. See WS03A to install this Panel.
Contact Us For a Lead Time
Specifications and Features
AE Stainless’ range of IP3X Escutcheon/Inner Door Kits are designed to fit any AES Standard or Sloping Roof Enclosures. The Escutcheon/Inner Door simply bolts onto the 4 studs in the enclosure. The mounting bracket is slotted and allows for adjustment. (From 20mm from gutter seal top edge to 65mm). The inner door is approx. 50mm smaller than the enclosure designed to fit into.
The kit comes complete with hinges/nuts/bolts. Non AE Stainless brand enclosures might need added bolts to fit these Escutcheons/Inner Doors.- Made from 1.5 mm stainless steel or 1.5 mm galvanised steel Powder coated White - IP3X rating
- Fits any Standard Enclosure
- Distance from door adjustable by 80mm
- Mounting holes slotted to easily mount to the enclosure via 4 x CD studs or via 4 x through-wall bolts/nuts
- Fitted with 2-bit stainless steel lock and pull tab
Specifications and Features
AE Stainless’ range of IP3X Escutcheon/Inner Door Kits are designed to fit any AES Standard or Sloping Roof Enclosures. The Escutcheon/Inner Door simply bolts onto the 4 studs in the enclosure. The mounting bracket is slotted and allows for adjustment. (From 20mm from gutter seal top edge to 65mm). The inner door is approx. 50mm smaller than the enclosure designed to fit into.
The kit comes complete with hinges/nuts/bolts. Non AE Stainless brand enclosures might need added bolts to fit these Escutcheons/Inner Doors.- Made from 1.5 mm stainless steel or 1.5 mm galvanised steel Powder coated White - IP3X rating
- Fits any Standard Enclosure
- Distance from door adjustable by 80mm
- Mounting holes slotted to easily mount to the enclosure via 4 x CD studs or via 4 x through-wall bolts/nuts
- Fitted with 2-bit stainless steel lock and pull tab
