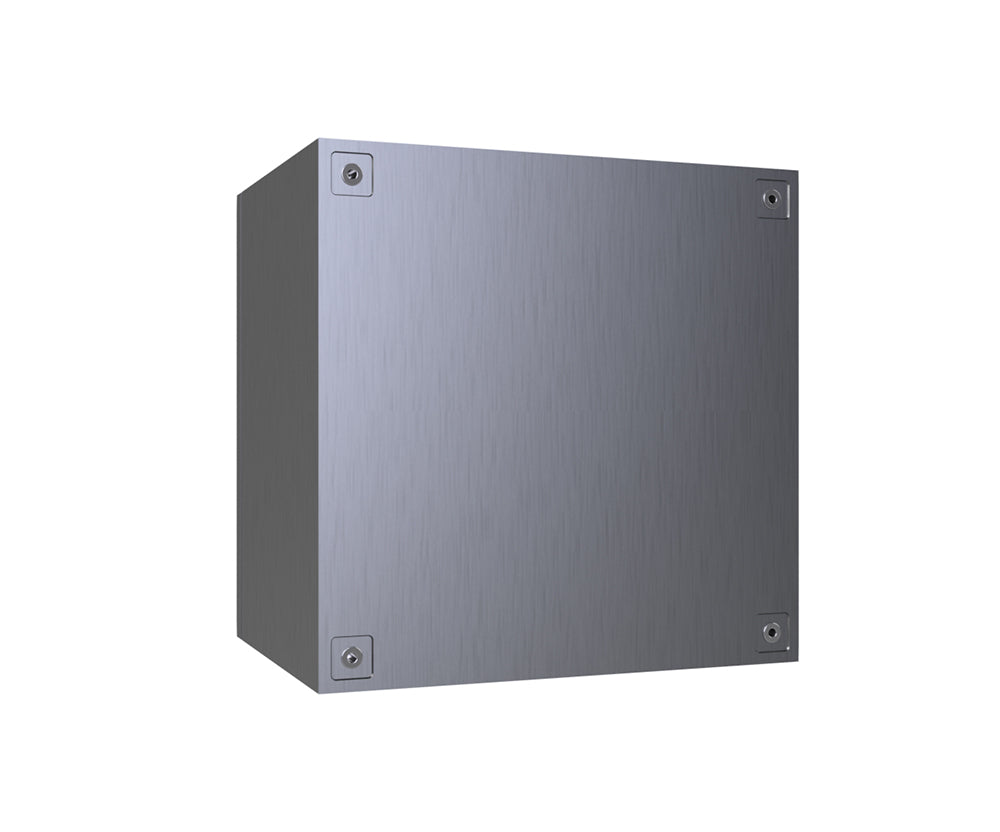

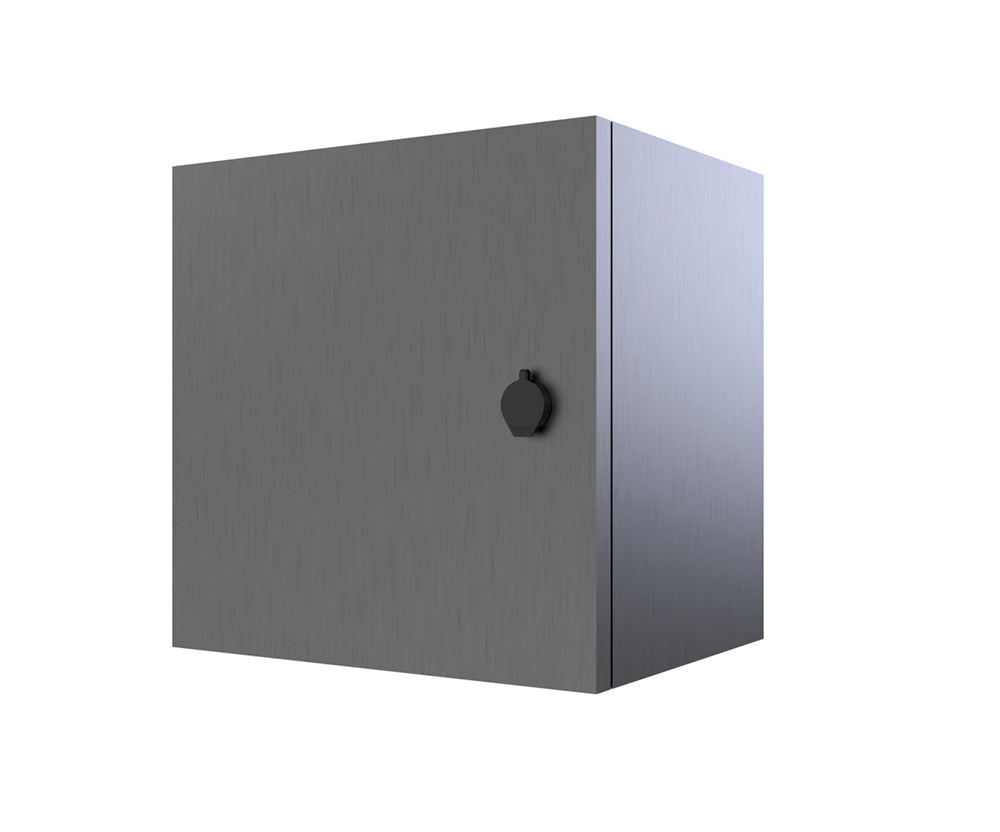

316L Stainless Steel Enclosure 500Hx500Wx300D - 1.5mmSKU: SS-500x500x300
Specifications and Features
AE Stainless’ range of stainless steel Standard Enclosures are renowned for its build quality, aesthetics and functionality. They are designed to protect equipment in extreme conditions - including corrosive marine. They are also designed to easily bolt in AE Stainless branded accessories such as Escutcheon/Inner doors, 19” racks etc.

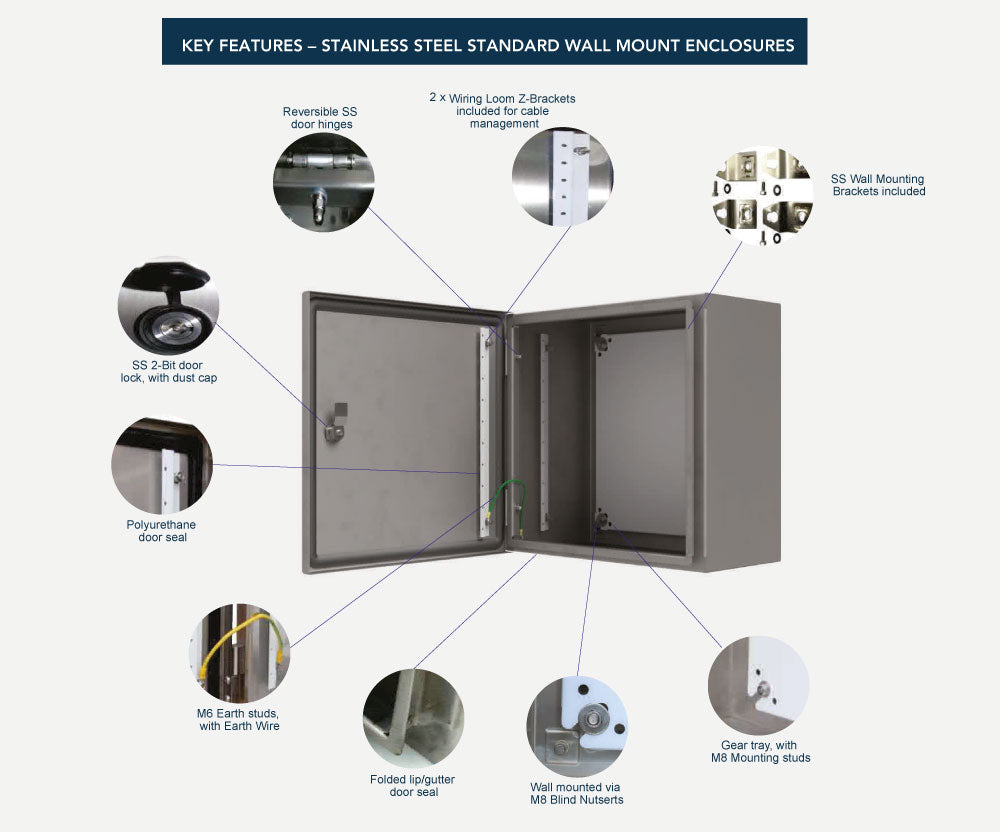

- Made from 1.5mm 316 stainless steel
- Fully welded construction - IP66 rating, IK10 Tested

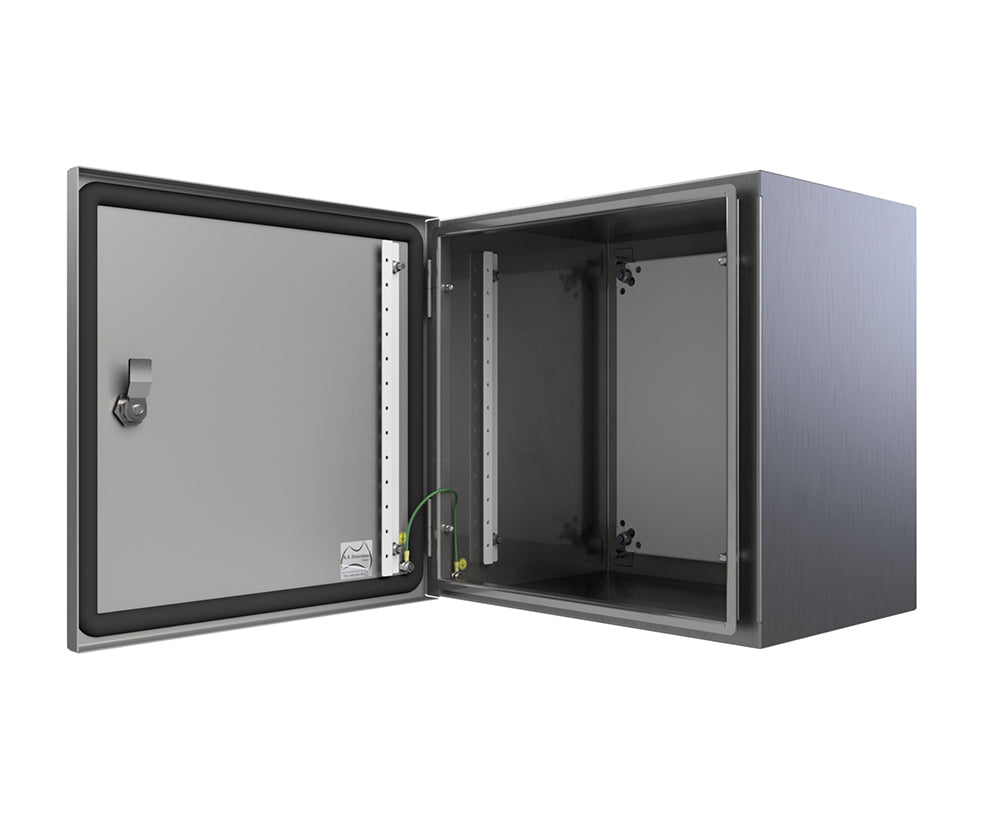

- Reversible door (left hinged is the default position)
- Door earthed to cabinet via earth studs
- Polyurethane door seal
- 2mm white powder coated galvanised steel gear tray included
- 2 x Wiring Loom Z-brackets included to help with cable management across door hinges
- Folded lip/gutter to ensure effective door seal
- Door fitted with concealed hinges on one side and 2-bit stainless steel lock on the other (600mm high and above have 2 x locks)
- Rear mounting holes fitted with blind nutserts to ensure IP rating
- 4 x wall mounting brackets included
Technical Drawing PDF
Or Download DWG FileDownload .dwg file
