30Deg Sloping Roof 316L Stainless Steel Enclosure 800Hx800Wx300D - 1.5mm

SKU: SS-SRE-800x800x300
Made from 316L Stainless Steel, N4 Finish, IP66 Rated and IK10 Tested, External Hinged Enclosure . Top and Bottom wall mounting Flanges Includes - White Mild steel gear tray, Earth wire, 2 x 2-bit Stainless Steel Locks and keys. Door left hand hinged only
Availability : Out of Stock - Please call to confirm ETA
Regular price
$1,717.00 Excl. GST
Sale price
$1,717.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

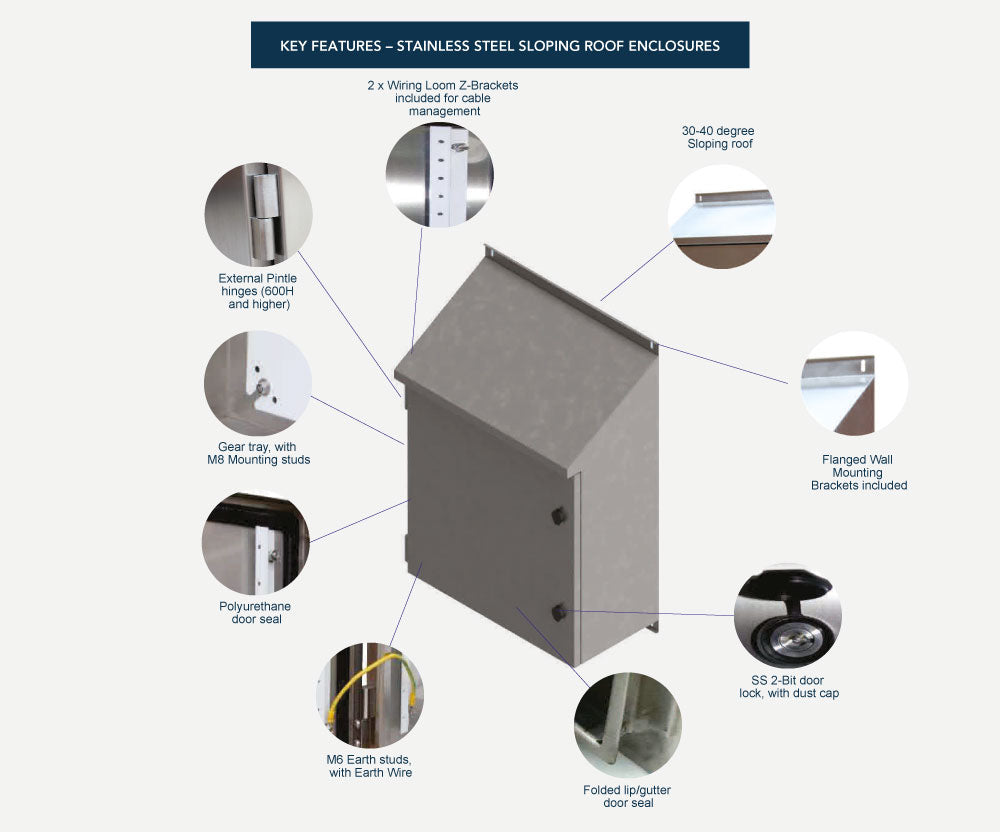

Specifications and Features

AE Stainless’ range of Sloped Roof Enclosures are renowned for its build quality, aesthetics and functionality. They are designed to protect equipment in extreme conditions - including corrosive marine. They are also designed to easily bolt in AE Stainless branded accessories such as Escutcheon/Inner doors, 19” racks etc.

  • Made from 1.5mm 316 stainless steel
  • Height is door height
  • Top and bottom flange to easily mount against a wall
  • Fully welded construction - IP66 rating, IK10 Tested
  • Door earthed to cabinet via earth studs
  • Polyurethane door seal
  • 2mm white powder coated galvanised steel gear tray included
  • 2 x Wiring Loom Z-brackets included for cable management across door hinges
  • Folded lip/gutter to ensure effective door seal
  • Door fitted with 2-bit stainless steel locks
  • 30 degree sloping roof

Technical Drawing PDF

Or Download DWG File

Download .dwg file
