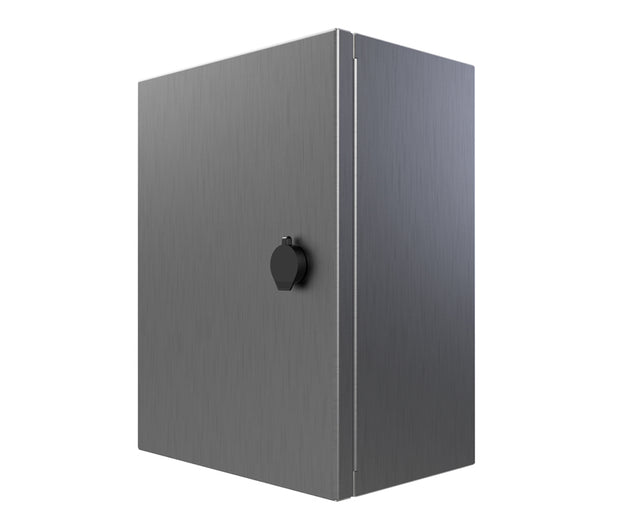

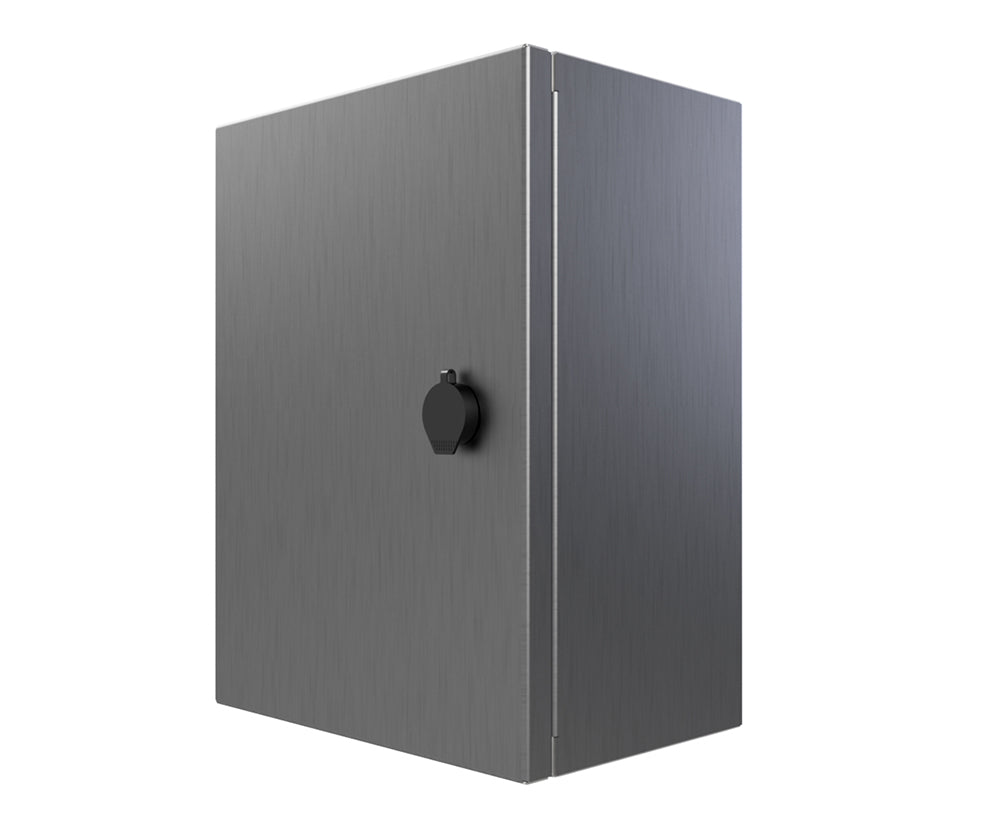

316L Stainless Steel Enclosure 300Hx200Wx150D - 1.5mm

SKU: SS-300x200x150
Made from 316L Stainless Steel, N4 Finish, IP66 Rated and IK10 Tested Enclosure. Includes - White Mild steel gear tray, Earth wire, 4 x M8 wall brackets, 1 x 2-bit Stainless Steel Lock and key. Door left hand hinged default
Availability : In Stock
Regular price
$225.00 Excl. GST
Sale price
$225.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

AE Stainless’ range of stainless steel Standard Enclosures are renowned for its build quality, aesthetics and functionality. They are designed to protect equipment in extreme conditions - including corrosive marine. They are also designed to easily bolt in AE Stainless branded accessories such as Escutcheon/Inner doors, 19” racks etc.

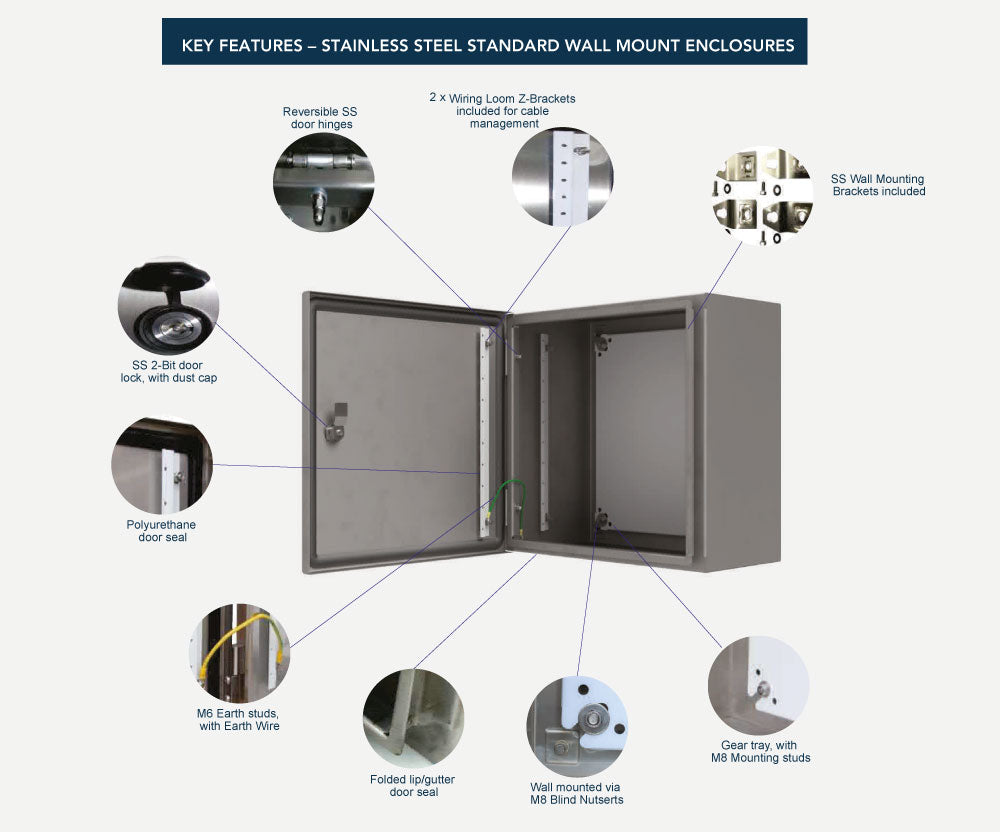

  • Made from 1.5mm 316 stainless steel
  • Fully welded construction - IP66 rating, IK10 Tested

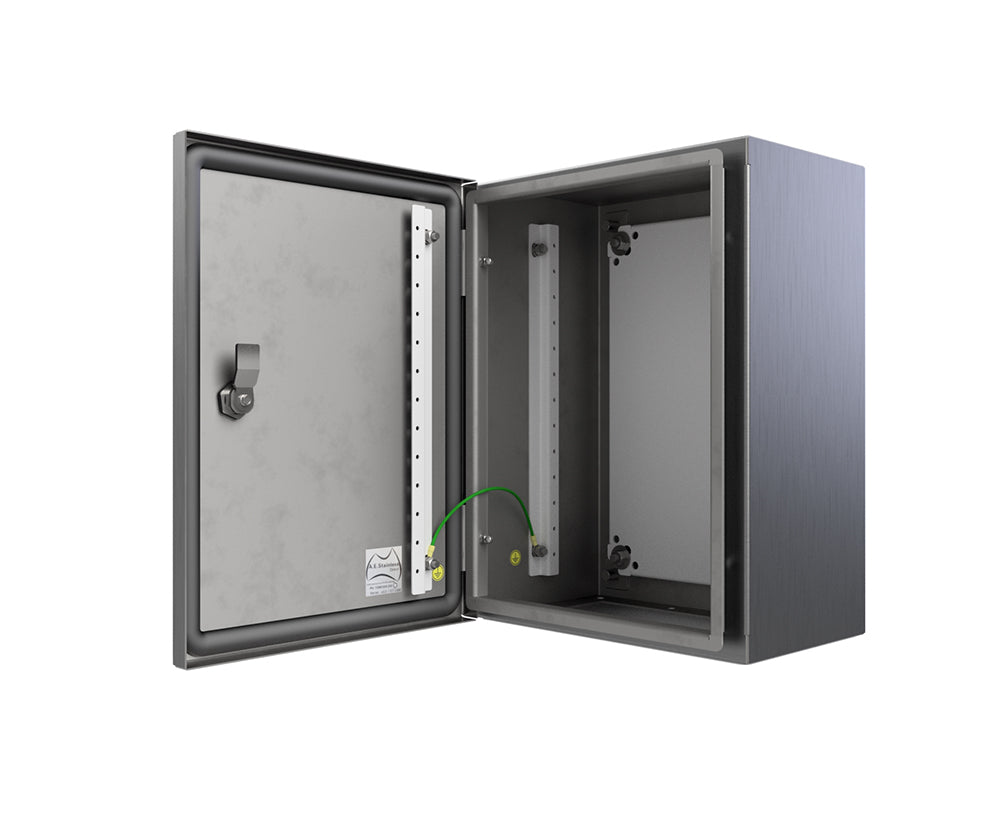

  • Reversible door (left hinged is the default position)
  • Door earthed to cabinet via earth studs
  • Polyurethane door seal
  • 2mm white powder coated galvanised steel gear tray included
  • 2 x Wiring Loom Z-brackets included to help with cable management across door hinges
  • Folded lip/gutter to ensure effective door seal
  • Door fitted with concealed hinges on one side and 2-bit stainless steel lock on the other (600mm high and above have 2 x locks)

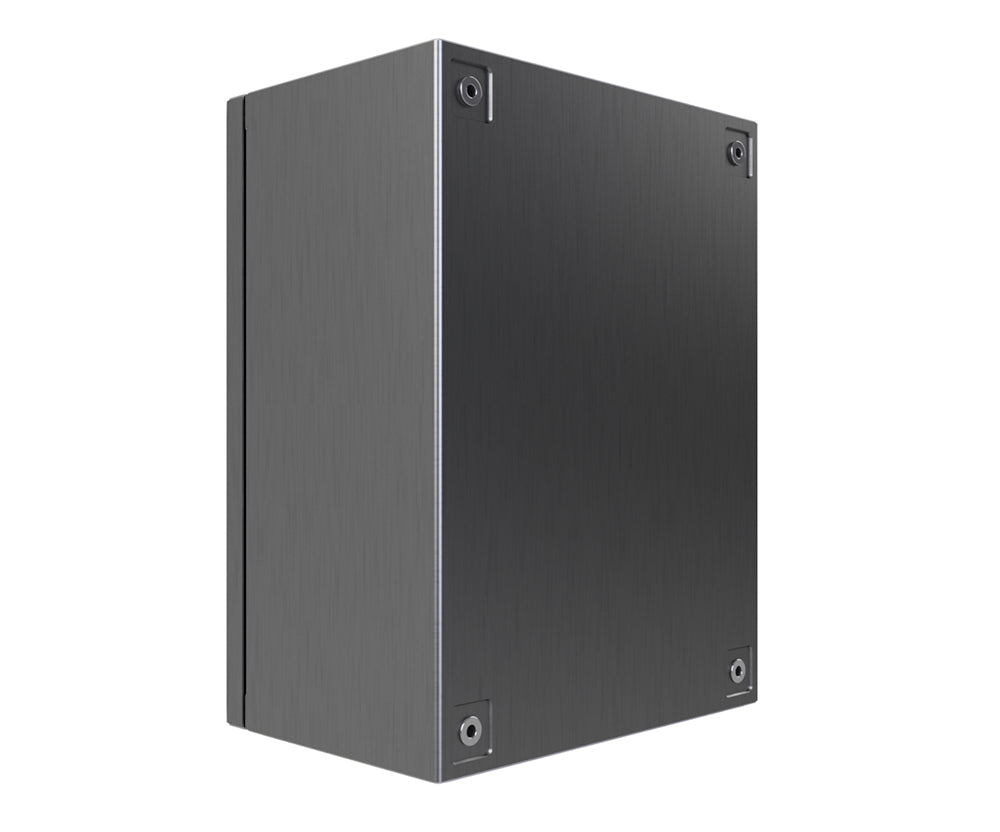

  • Rear mounting holes fitted with blind nutserts to ensure IP rating
  • 4 x wall mounting brackets included

Technical Drawing PDF

Or Download DWG File

Download .dwg file
