RAL7035 Powder Coated, Galvanised Mild Steel Enclosure 800Hx600Wx300D - 1.5mm

SKU: MS-RAL7035-800x600x300
IP66 Rated and IK10 Tested Enclosure Includes - White Powder Coated Mild steel Gear Tray, 1 x RAL7035 Gland Plate, 6 x Wall mounting brackets, 2 x 2-bit Stainless Steel Lock with keys, left hand hinged default
Availability : In Stock
Regular price
$397.00 Excl. GST
Sale price
$397.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

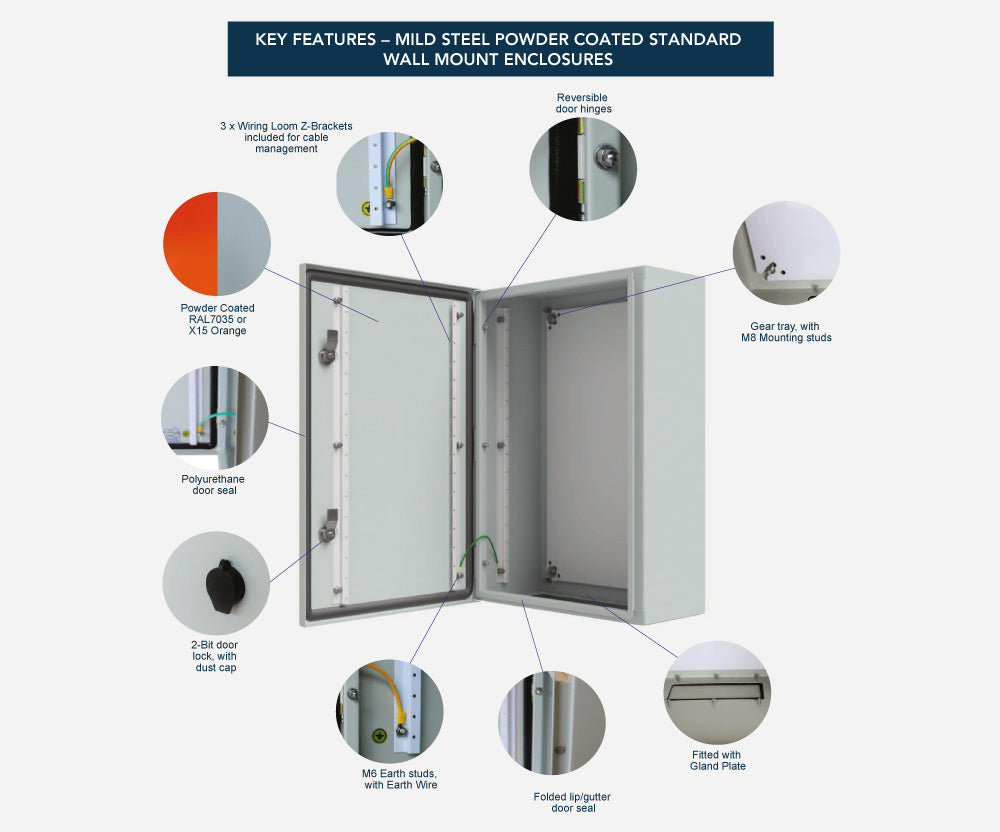

AE Stainless’ range of Standard Mild Steel Enclosures have the same design as the Standard Stainless Steel series. They are designed to be used indoors and outdoors, but are not recommended in marine conditions. They are designed to easily bolt in AE Stainless branded accessories such as Escutcheon/Inner doors, 19” racks etc.

  • Made from 1.5 mm galvanised steel
  • Powder coated in X15 Orange or RAL7035
  • Fully welded construction - IP66 rating, IK10 Tested
  • Reversible door (left hinged is the default position)
  • Door earthed to cabinet via earth studs
  • Polyurethane door seal
  • 2mm white powder coated galvanised steel gear tray included
  • 3 x Wiring Loom Z-brackets included to help with cable management across door hinges
  • Folded lip/gutter to ensure effective door seal
  • Door fitted with concealed hinges on one side and 2-bit steel lock on the other
  • Fitted with powder coated gland plate and poured Polyurethane seal on bottom of enclosure
  • 4 x wall mounting brackets included
  • Some sizes will be available with 4 x M6 nutserts fitted - Please contact us to see if required size has been updated and if in stock

Technical Drawing PDF

Or Download DWG File

Download .dwg file
