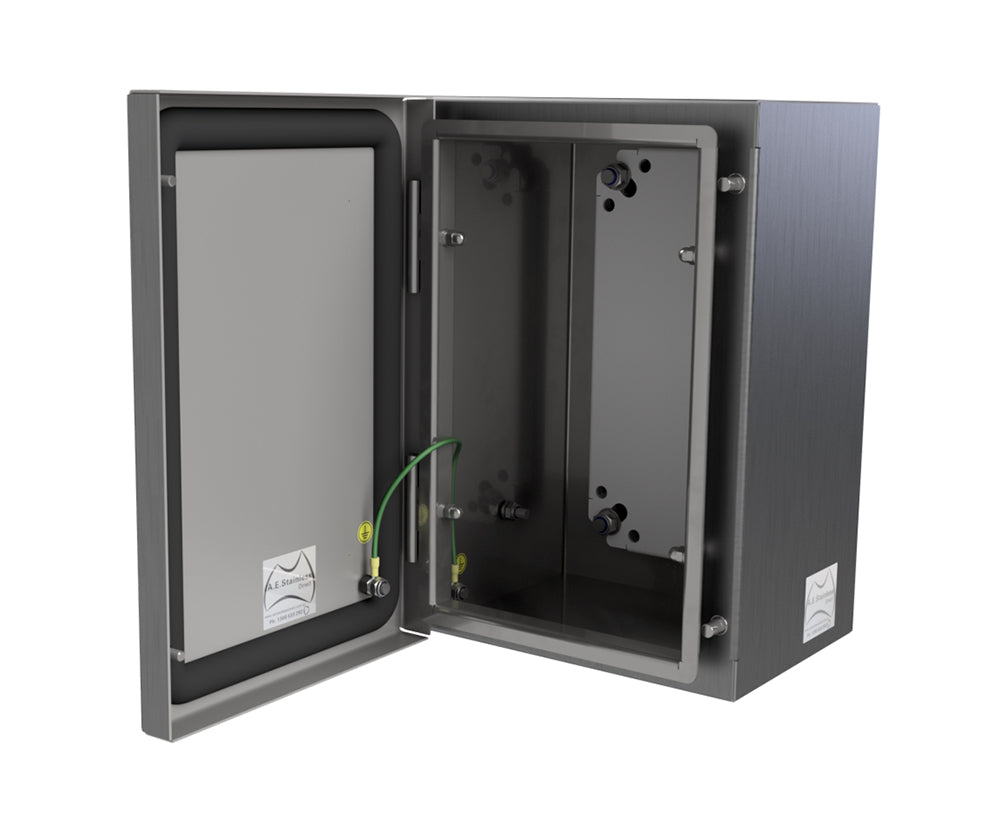

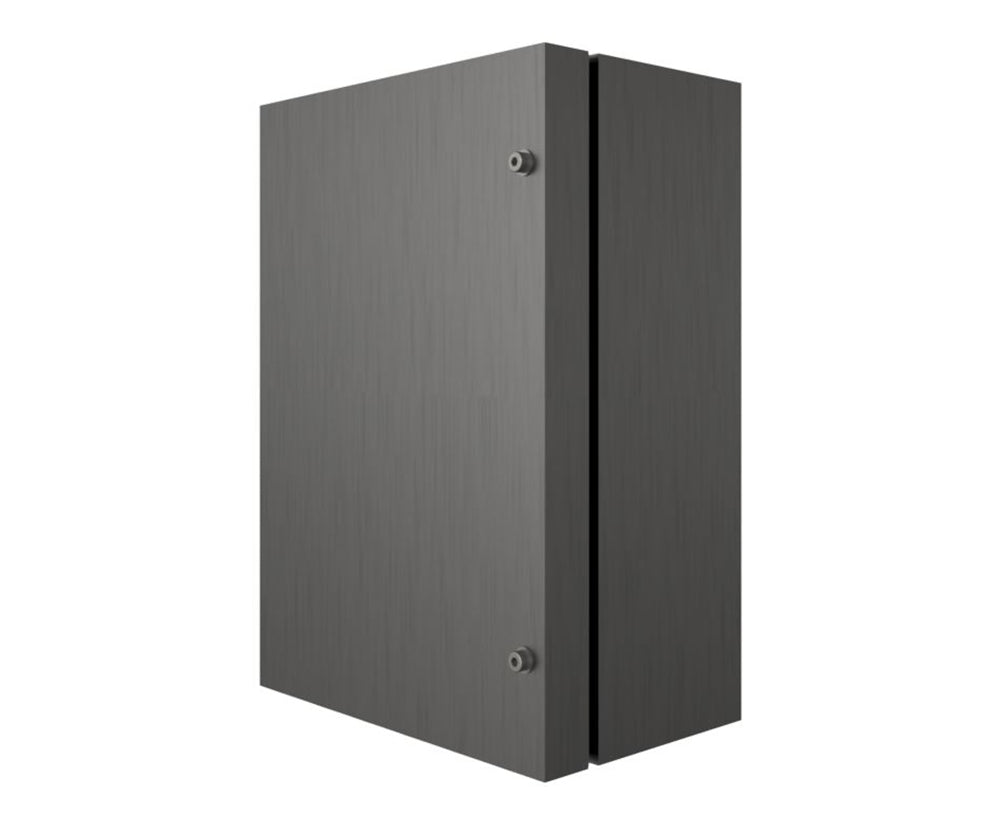

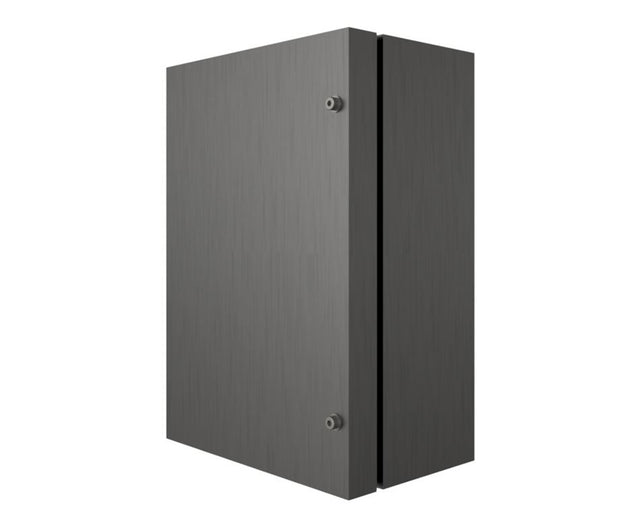

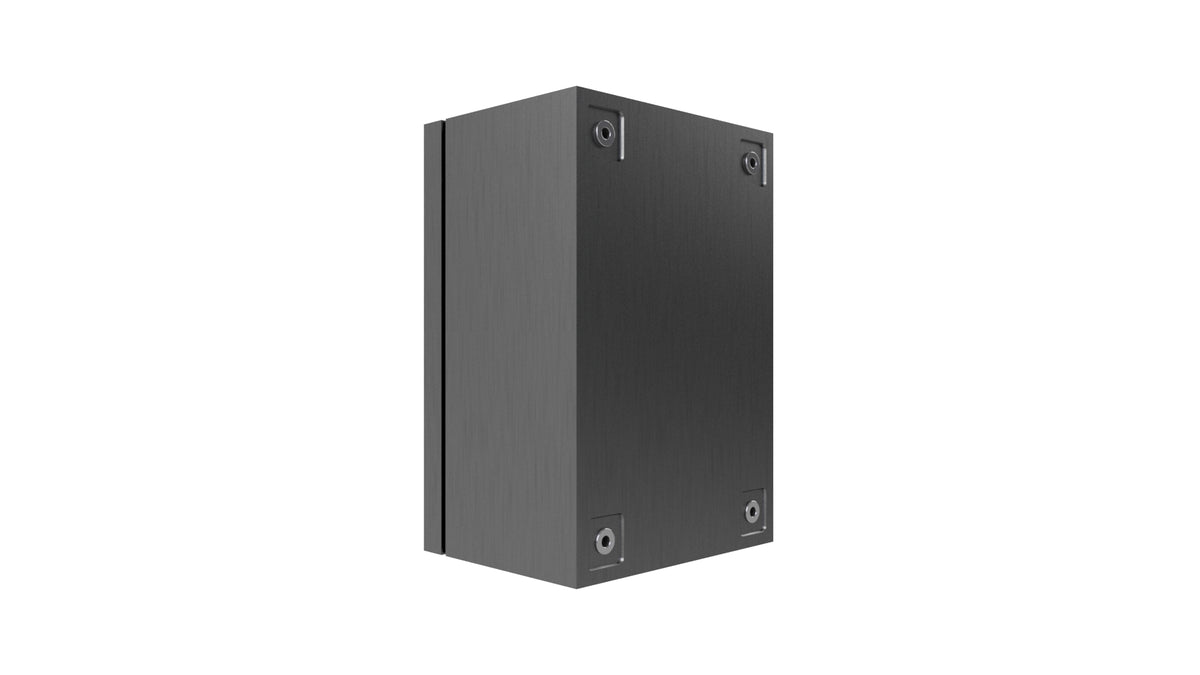

316 Stainless Steel Enclosure 300Hx200Wx150D - 1.5mm (Hinged & Bolted)
316 Stainless Steel Enclosure 300Hx200Wx150D - 1.5mm (Hinged & Bolted)
316 Stainless Steel Enclosure 300Hx200Wx150D - 1.5mm (Hinged & Bolted)
  • Load image into Gallery viewer, 316 Stainless Steel Enclosure 300Hx200Wx150D - 1.5mm (Hinged & Bolted)
  • Load image into Gallery viewer, 316 Stainless Steel Enclosure 300Hx200Wx150D - 1.5mm (Hinged & Bolted)
  • Load image into Gallery viewer, 316 Stainless Steel Enclosure 300Hx200Wx150D - 1.5mm (Hinged & Bolted)

316 Stainless Steel Enclosure 300Hx200Wx150D - 1.5mm (Hinged & Bolted)

SKU: SS-Bolted-300x200x150
Made from 316L Stainless Steel, N4 Finish, IP66 Rated and IK10 Tested Enclosure. Includes - White Mild steel gear tray, Earth wire, 4 x M8 wall brackets. Door left hand hinged default
Availability : In Stock
Regular price
$225.00 Excl. GST
Sale price
$225.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

AE Stainless’ range of stainless steel Hinged and Bolted Enclosures are designed for applications where maximum door space is important. The door is bolted in the closed position - there is no door lock. It can also be fitted with anti-tamper bolts.

  • Made from 1.5mm 316 stainless steel
  • Fully welded construction - IP66 rating, IK10 Tested
  • Door earthed to cabinet via earth studs
  • Polyurethane door seal
  • 2mm galvanised steel gear tray included
  • Folded lip/gutter to ensure effective door seal
  • Door fitted with concealed hinges on one side and 2 bolts on the other

Technical Drawing PDF

Or Download DWG File

Download .dwg file
