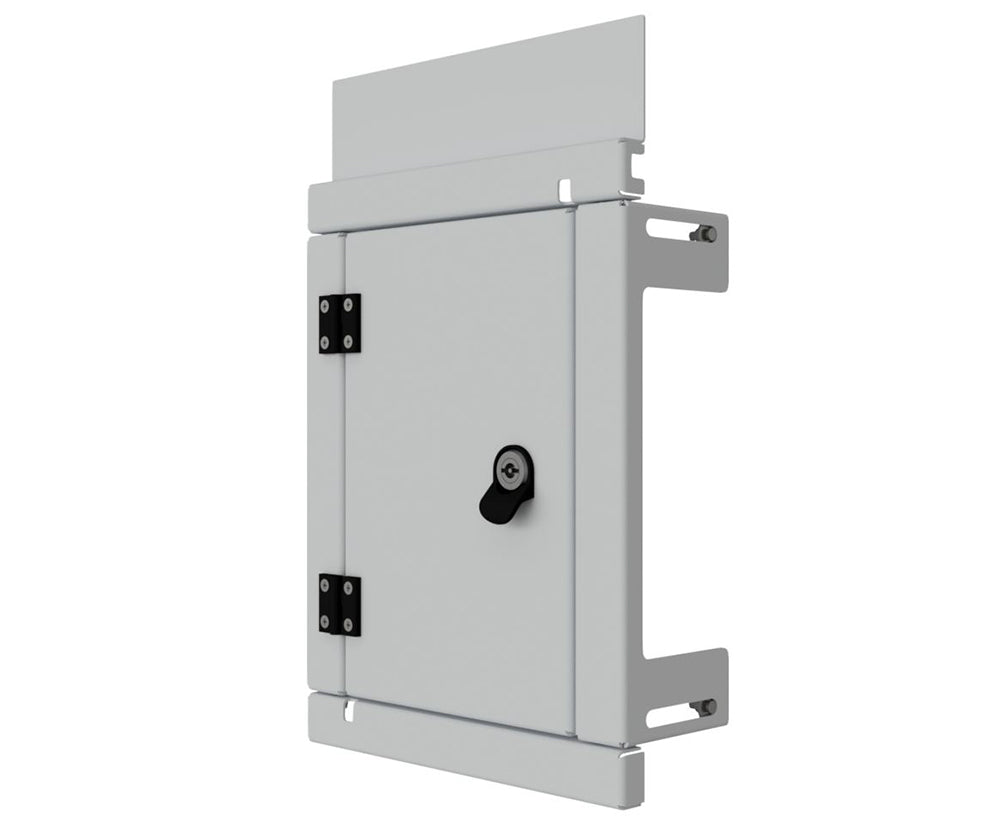

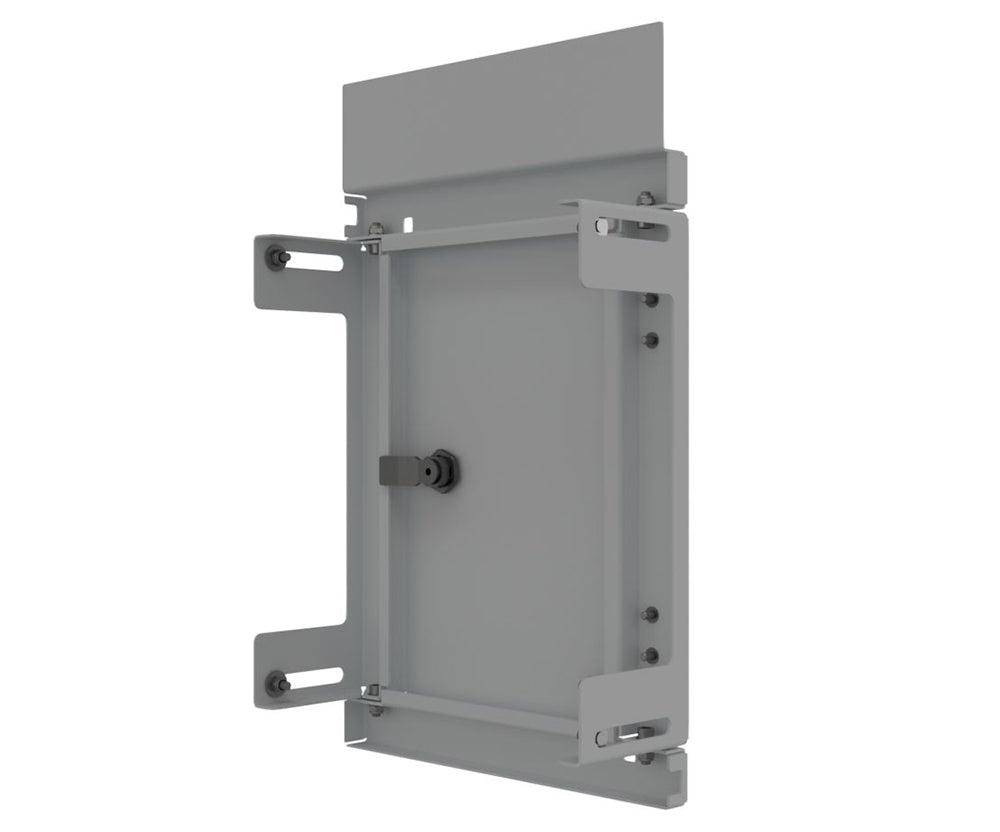

Mild Steel Escutcheon Kit Panel / Inner Door -IP3X, to fit 400x300 Sloping Roof enclosure
SKU: MS-Escut-IP3X-SR-400x300Specifications and Features
AE Stainless’ range of IP3X Escutcheon/Inner Door Kits are designed to fit any AES Standard or Sloping Roof Enclosures. The Escutcheon/Inner Door simply bolts onto the 4 studs in the enclosure. The mounting bracket is slotted and allows for adjustment. (From 20mm from gutter seal top edge to 65mm). The inner door is approx. 50mm smaller than the enclosure designed to fit into.
The kit comes complete with hinges/nuts/bolts. Non AE Stainless brand enclosures might need added bolts to fit these Escutcheons/Inner Doors.- Made from 1.5 mm stainless steel or 1.5 mm galvanised steel Powder coated White - IP3X rating
- Fits any Standard Enclosure
- Distance from door adjustable by 80mm
- Mounting holes slotted to easily mount to the enclosure via 4 x CD studs or via 4 x through-wall bolts/nuts
- Fitted with 2-bit stainless steel lock and pull tab
Specifications and Features
AE Stainless’ range of IP3X Escutcheon/Inner Door Kits are designed to fit any AES Standard or Sloping Roof Enclosures. The Escutcheon/Inner Door simply bolts onto the 4 studs in the enclosure. The mounting bracket is slotted and allows for adjustment. (From 20mm from gutter seal top edge to 65mm). The inner door is approx. 50mm smaller than the enclosure designed to fit into.
The kit comes complete with hinges/nuts/bolts. Non AE Stainless brand enclosures might need added bolts to fit these Escutcheons/Inner Doors.- Made from 1.5 mm stainless steel or 1.5 mm galvanised steel Powder coated White - IP3X rating
- Fits any Standard Enclosure
- Distance from door adjustable by 80mm
- Mounting holes slotted to easily mount to the enclosure via 4 x CD studs or via 4 x through-wall bolts/nuts
- Fitted with 2-bit stainless steel lock and pull tab
