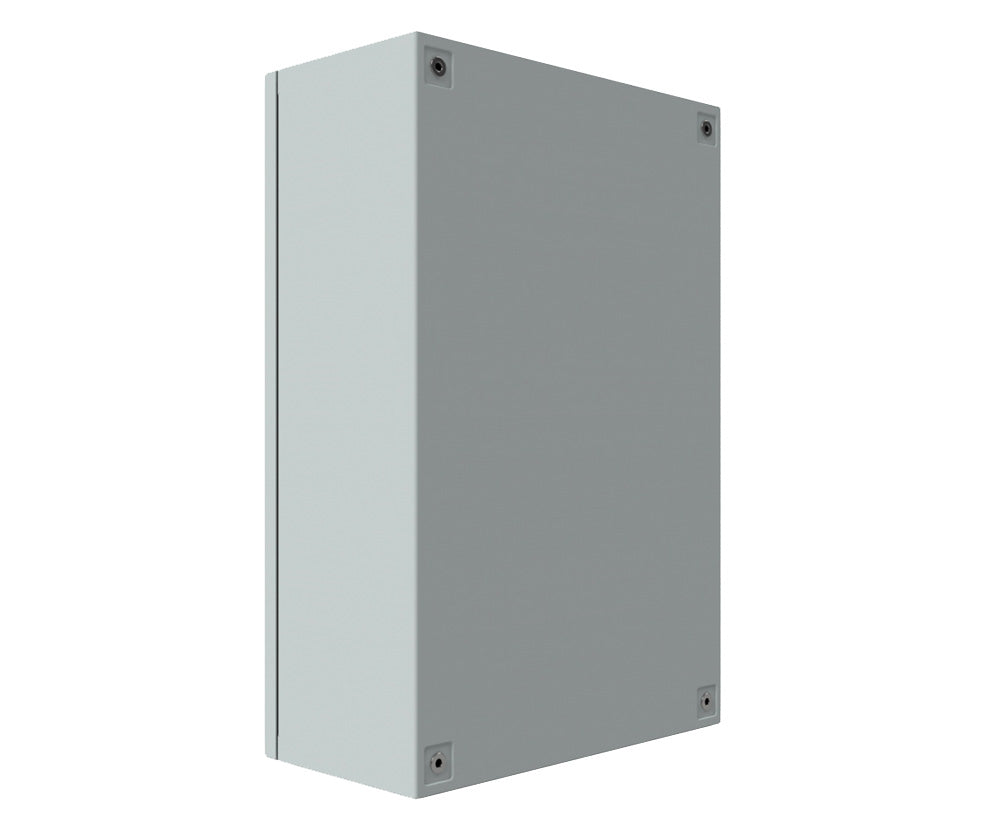

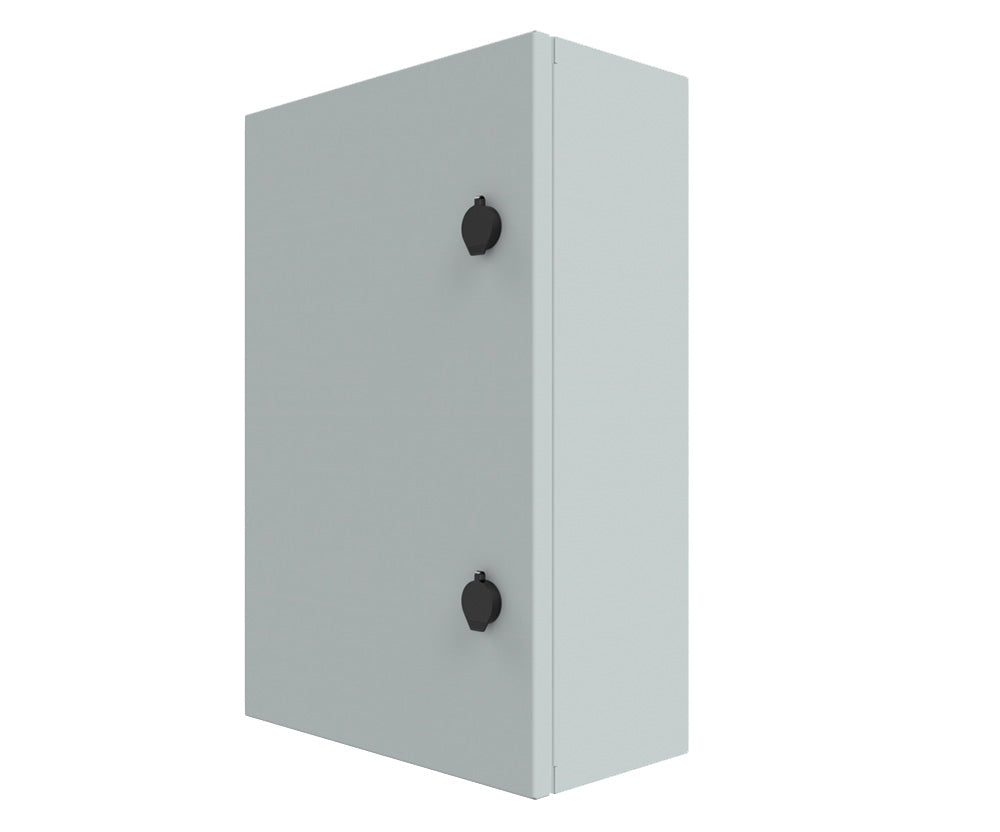

RAL7035 Powder Coated, Aluminium Enclosure 800Hx600Wx300D - 2.5mm
SKU: ALU-RAL7035-800x600x300
IP66 Rated and IK10 Tested Enclosure Includes - White Powder Coated Aluminium Gear Tray, 4x M8 Wall Mounting Brackets, 2 Stainless Steel 2Bit locks with key, left hand hinged default
Specifications and Features
AE Stainless’ range of Standard Aluminium Enclosures have the same design as the Standard Stainless Steel series. Due to their light weight, they are ideal for pole mounted solar applications. They are designed to easily bolt in AE Stainless branded accessories such as Escutcheon/Inner doors, 19” racks etc.
- Made from 2.5 mm 5052 Aluminium, Powder coated in RAL7035
- Fully welded construction - IP66 rating, IK10 Tested
- Reversible door (left hinged is the default position)
- Door earthed to cabinet via earth studs
- Polyurethane door seal
- 2.5mm white powder coated Aluminium gear tray included
- 2 x U-brackets welded to the doors and 1 x Wiring Loom Z-bracket mounted inside enclosure.
- Folded lip/gutter to ensure effective door seal
- Door fitted with concealed hinges on one side and 2-bit Stainless steel lock on the other
- Rear mounting holes fitted with M8 blind nutserts to ensure IP rating
- 4 x Wall mount brackets included
