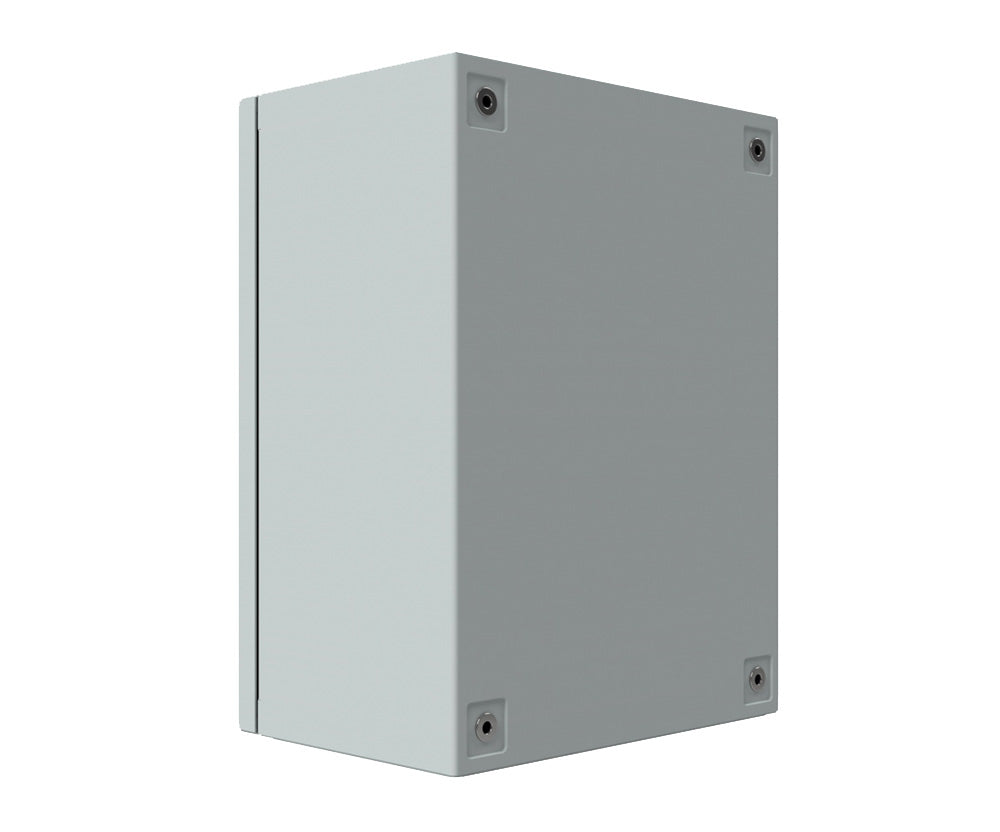

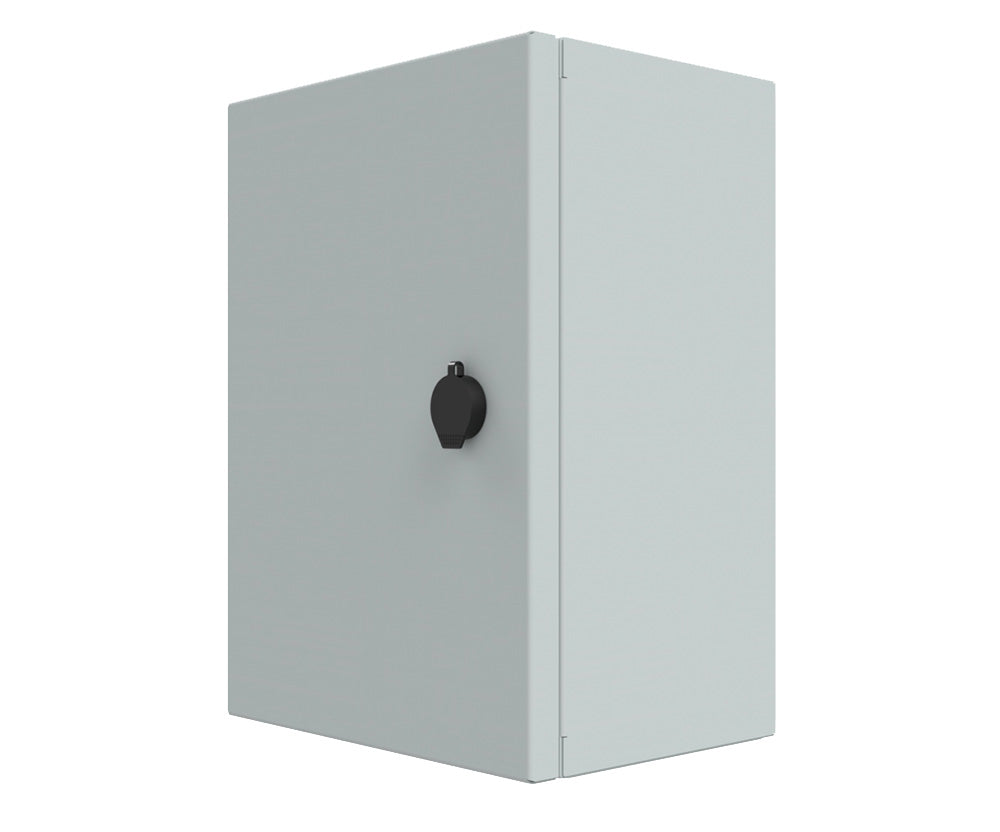

RAL7035 Powder Coated, Aluminium Enclosure 400Hx300Wx200D - 2.5mm
RAL7035 Powder Coated, Aluminium Enclosure 400Hx300Wx200D - 2.5mm
  • Load image into Gallery viewer, RAL7035 Powder Coated, Aluminium Enclosure 400Hx300Wx200D - 2.5mm
  • Load image into Gallery viewer, RAL7035 Powder Coated, Aluminium Enclosure 400Hx300Wx200D - 2.5mm

RAL7035 Powder Coated, Aluminium Enclosure 400Hx300Wx200D - 2.5mm

SKU: ALU-RAL7035-400x300x200
IP66 Rated and IK10 Tested Enclosure Includes - White Powder Coated Aluminium Gear Tray, 4x M8 Wall Mounting Brackets, 1 Stainless Steel 2Bit lock with key, left hand hinged default
Availability : In Stock
Regular price
$259.00 Excl. GST
Sale price
$259.00
Regular price
Unit price
per
Shipping calculated at checkout.

We Support:

Specifications and Features

AE Stainless’ range of Standard Aluminium Enclosures have the same design as the Standard Stainless Steel series. Due to their light weight, they are ideal for pole mounted solar applications. They are designed to easily bolt in AE Stainless branded accessories such as Escutcheon/Inner doors, 19” racks etc.

  • Made from 2.5 mm 5052 Aluminium, Powder coated in RAL7035
  • Fully welded construction - IP66 rating, IK10 Tested
  • Reversible door (left hinged is the default position)
  • Door earthed to cabinet via earth studs
  • Polyurethane door seal
  • 2.5mm white powder coated Aluminium gear tray included
  • 2 x U-brackets welded to the doors and 1 x Wiring Loom Z-bracket mounted inside enclosure.
  • Folded lip/gutter to ensure effective door seal
  • Door fitted with concealed hinges on one side and 2-bit Stainless steel lock on the other
  • Rear mounting holes fitted with M8 blind nutserts to ensure IP rating
  • 4 x Wall mount brackets included

Technical Drawing PDF

Or Download DWG File

Download .dwg file
